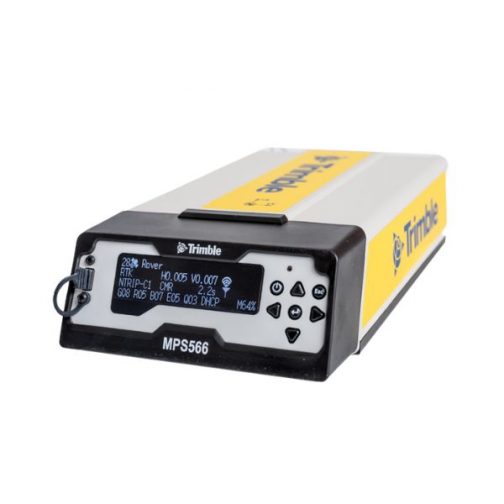

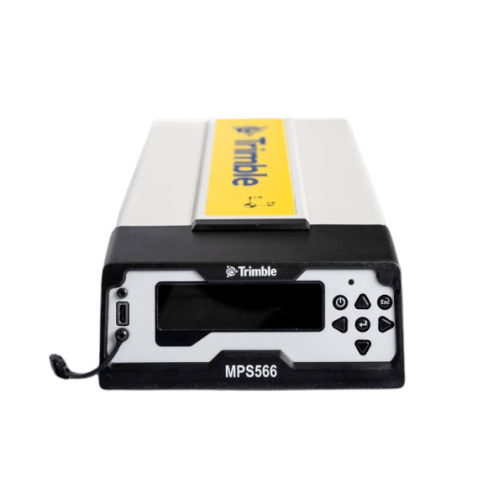

Trimble MPS566

The Trimble® MPS566 modular GNSS heading receiver is a high accuracy, dual-antenna GNSS heading receiver with advanced connectivity. The MPS566 receiver delivers highly accurate positions and orientation in challenging GNSS conditions, using a wide variety of GNSS correction sources. This ‘all-in-one’ unit incorporates the latest industry-leading positioning technology from Trimble along with a full suite of modern communications capabilities, in a rugged, compact package that can withstand harsh work environments and be deployed anywhere.

With a modular form factor, the MPS566 receiver is flexible and can be used as an integrated on-board communication receiver, onshore land rover, or a continuously operating reference station. The MPS566 receiver allows the connection of two GNSS antennas for precise heading. The MPS566 receiver will replace the dual install Trimble R750 GNSS modular receivers in the Groundworks system and the Trimble MPS865 Marine GNSS Receiver in the Trimble Marine Control (TMC) dredging systems.


Key Features

  • 30 cm Location RTK rover capability (RTK correction source required).
  • Trimble CenterPoint® RTX for RTK level precision anywhere (rover upgrade not required) (subscription required).
  • Trimble OmniSTAR® service and Fugro MarineSTAR capable (rover upgrade not required) (subscription required).
  • Dual MSS tracking capability (e.g., Trimble RTX® and Fugro MarineSTAR)
  • Trimble ProPoint® technology for superior performance in challenging GNSS conditions.
  • Trimble xFill® technology for seamless RTK coverage during connection outages.
  • GNSS triple-frequency tracking:
    • GPS: L1-C/A, L1C, L2E, L2C, L5
    • GLONASS: L1-C/A, L2-C/A, L1P, L2P, L3
    • QZSS: L1 C/A, L1C, L1S, L2C, L5, L6
    • NavIC: L5-C/A
    • SBAS: L1-C/A, L5
  • Wi-Fi® access point and client.
  • Internal LTE 4G modem with nano SIM slot.
  • Internal UHF radio (depending on the model). See Internal UHF Radio.
  • GNSS data logging to internal memory.
  • 1PPS output, event input.
  • Built-in spectrum analyzer in the web browser interface.
  • NMEA outputs.
  • 20 Hz position outputs (50 Hz with Precise Rover upgrade).


MPS566 Specification sheet

Trimble MPS 566 Datasheet
