Trimble GEDO Track (Software)

For geodetic alignment based measurement

Based on the measurement, the differences between actual and target are displayed live in the field according to the track design together with the current station and the next tangent points. The calculation can be carried out either horizontally or in an elevated system.

Variant GEDO Track Survey is a software for several survey tasks on railway lines.

REQUEST MORE INFORMATION
rail_gedo_doc_software
gedo_track

Description

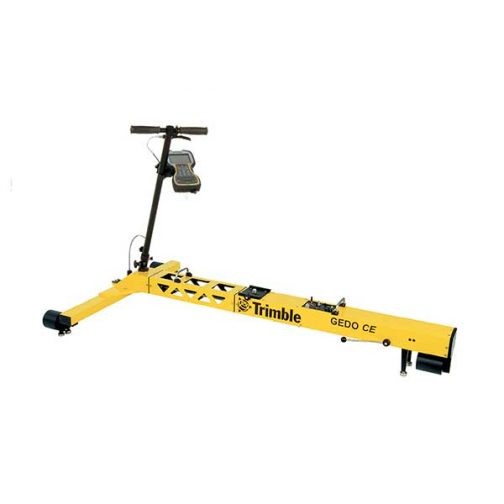

GEDO Track Trolley is used in combination with the track measuring trolley GEDO CE 2.0 and a Trimble Total Station or a Trimble GNSS receiver. Based on the measurements from the geodetic sensor and the cant and gauge values from the trolley the differences between design and as-built are calculated and visualised online in the field. These are calculated horizontal and in the elevated track system for the complete track (left and right rail).

If, due to the construction method or the low construction output, no track measuring device can be used, the GEDO Track Bar variant with the Trimble GEDO track measuring bar is used.
