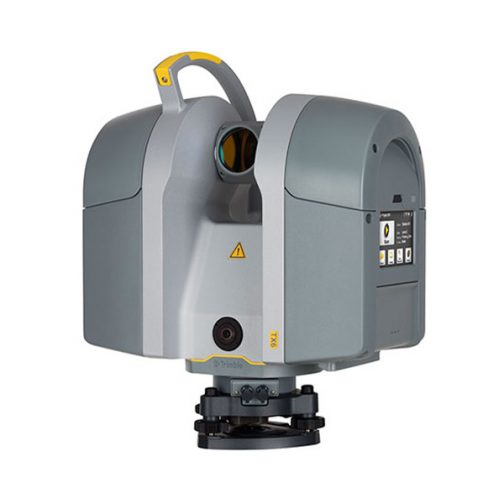

Trimble TX6

3D Laser Scanner

*PLEASE NOTE THIS PRODUCT IS NO LONGER AVAILABLE TO PURCHASE. PLEASE CONTACT US FOR HIRE INFO OR VIEW THE CLOSEST PRODUCT EQUIVALENT, TRIMBLE X7

Essential performance, range, accuracy and speed

  • 500k pts/sec Scanning Speed
  • 80m Standard, 120m Extended Scanning Range
  • Integrated HDR camera, 10 MP resolution Imaging
  • Essential performance – effective high speed scanning with consistent accuracy over the full scan range. The Trimble TX6 delivers superior performance compared to other similarly priced scanners
  • High quality data – quickly capture clean data even in bright sunlight. Be confident you will get the quality data you need with less setups to complete the project
  • Integrated HDR camera – Trimble VISION™ technology provides fast image capture to colorize scans with minimal impact on field productivity
  • Integrated WLAN – enables wireless remote operation from Windows, Apple and Android mobile devices.
  • Effective ranges – choose from standard 80 meter range or upgrade to extended 120 meter range to match the standard scan range of the Trimble TX8
  • Easy to operate – the intuitive onboard interface makes the TX6 easy to learn, reducing startup time. Users will immediately build confidence to successfully complete projects

Description

Performance

  • 500,000 points per second with no compromise on scan quality or range
  • Typical high density scan time of only 5 minutes
  • Integrated HDR camera to colorize scans
  • Easy to use onboard interface with no complex parameters
  • Integrated WLAN for remote operation from any mobile device
  • Robust design with IP 54 rating for demanding environments
  • Upgradeable from 80m standard to 120 meter extended range

Applications

  • Building Information Modeling (BIM)
  • Virtual Design Construction (VDC)
  • Pre-construction as-builts
  • Quality control
  • Preservation and restoration
  • Deformation monitoring
  • Plant and industrial measurement
  • Public safety and forensics

Software

The Trimble TX6 streamlines work in the office as well. The scanner’s clean, low-noise data reduces processing time. That data loads directly into Trimble RealWorks® software and Trimble Scan Explorer,enabling project collaboration via Internet Explorer. The Trimble TX6 paired with RealWorks also provides efficient data flow into popular CAD programs, Trimble EdgeWise and SketchUp® for point cloud modeling.
