Trimble X9

Trimble X9

The power to do more.

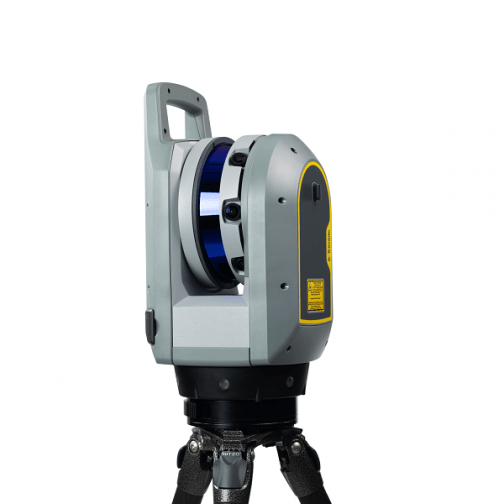

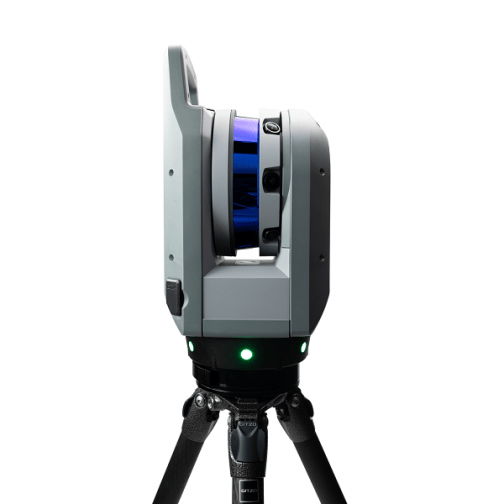

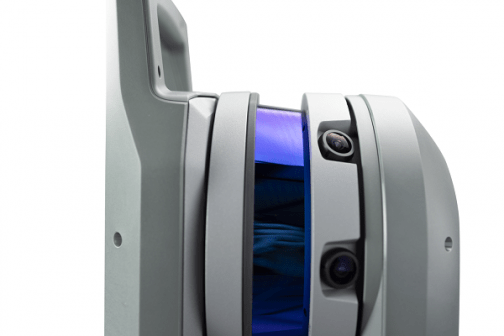

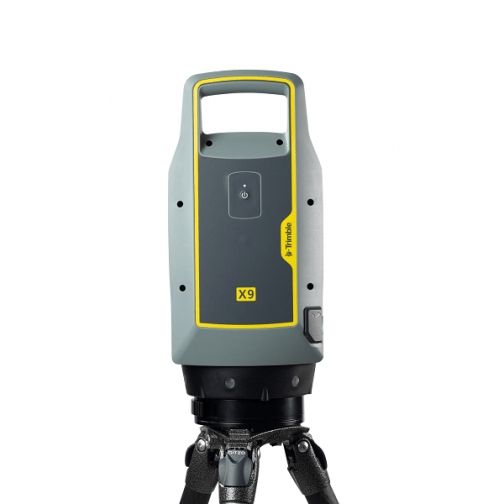

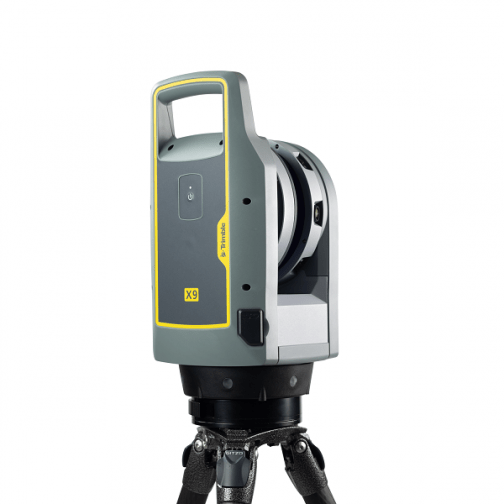

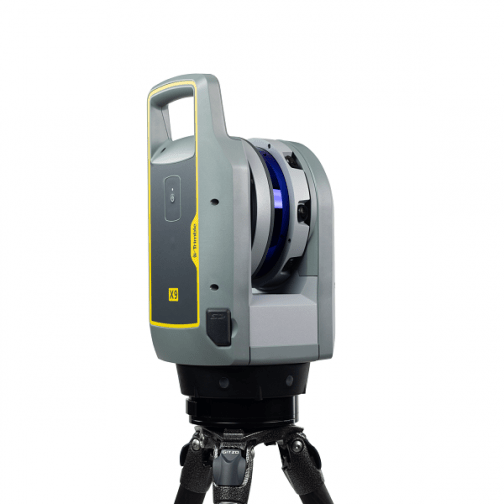

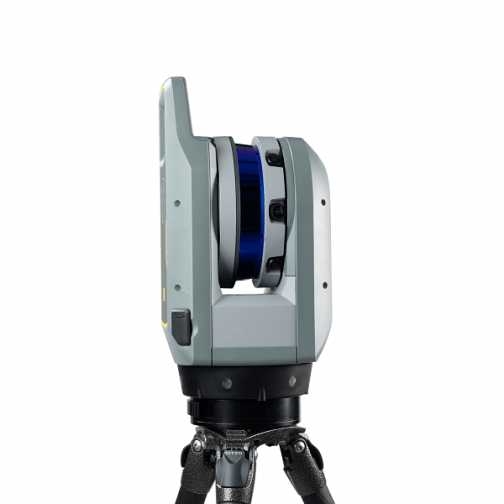

The Trimble® X9 3D laser scanning system is built with proven Trimble laser scanning technologies, offering the range, accuracy, scan times and sensitivity you need to do more, better, and faster.

Trimble’s most versatile laser scanner, offering intermediate range, high accuracy and short scan times with higher sensitivity for peak performance.

  • Scan speed – Up to 1000 kHz
  • Scan range – 0.6 m to 150 m
  • Scan times – < 1 min to 6 min
  • Auto-calibration – No targets or user interaction for accuracy on every scan
  • Self-leveling – <3″ with tilt compensation range of ±10°
  • Environmental protection – IP55
  • Operating temperature – -20°C to +50°C (–4°F to 122°F)
  • Ease of use – Intuitive Trimble Perspective workflows


Trusted technological innovations

Field-proven automatic calibration and self-leveling ensure easy setup and accurate data to guarantee consistent results, plus a laser pointer for georeferencing.

Flexible performance and workflows

The speed, range, accuracy, sensitivity and environmental capability to scan with confidence in challenging conditions using tablet, phone or hands-free workflows.

Intuitive & powerful

Trimble Perspective provides unparalleled clarity in the field with automatic scan registration and full 3D visibility to validate data in real time.

Complete scanning solution

With Trimble Business Center or RealWorks software leverage advanced application specific tools for registration, scan analysis and design to enhance final deliverables.
