DJI Dock 3 & M4D

DJI Dock 3 & Matrice 4D is an autonomous drone-in-a-box solution designed for professional mapping, surveying, and visual inspections.

Built for 24/7 remote operations, it combines high-resolution imaging, precise measurement, and rugged all-weather performance. This package includes DJI Dock 3 with a 1-Year “Return to Base” Midwich Plan, Matrice 4D with DJI Care Enterprise Plus (1 Year), one M4D battery, and DJI RC Plus 2 for flexible manual control when required.



Key Features

Autonomous Visual Inspections
Enables scheduled, remote missions for high-accuracy mapping and infrastructure inspections.

High-Resolution Imaging Suite
Multi-camera system delivers detailed visual data for surveying asset monitoring.

Precise Measurement Capability
Integrated laser range finder supports accurate distance and inspection measurements.

Enterprise-Grade Autonomous System
Designed for continuous use in harsh environments with IP-rated protection and rapid recharge cycles.

Description

Key Technical Specs:

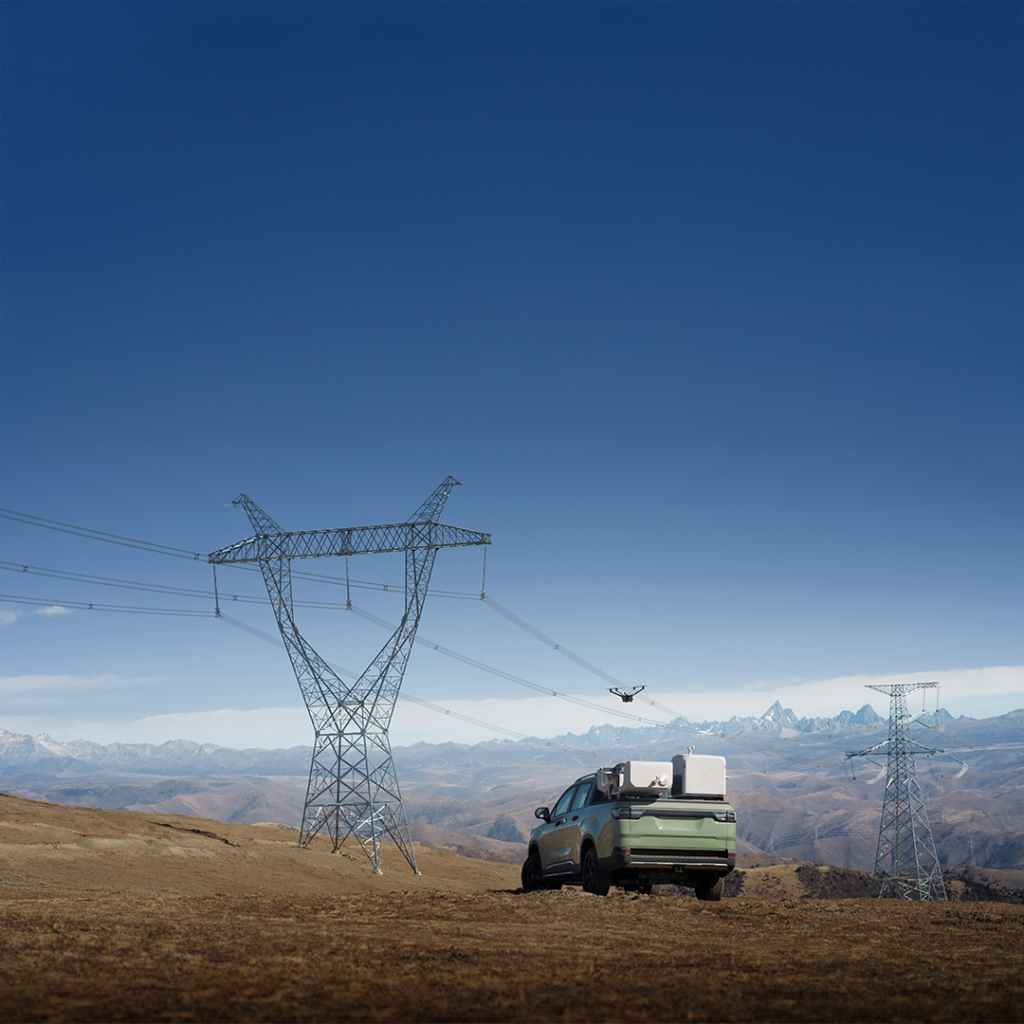

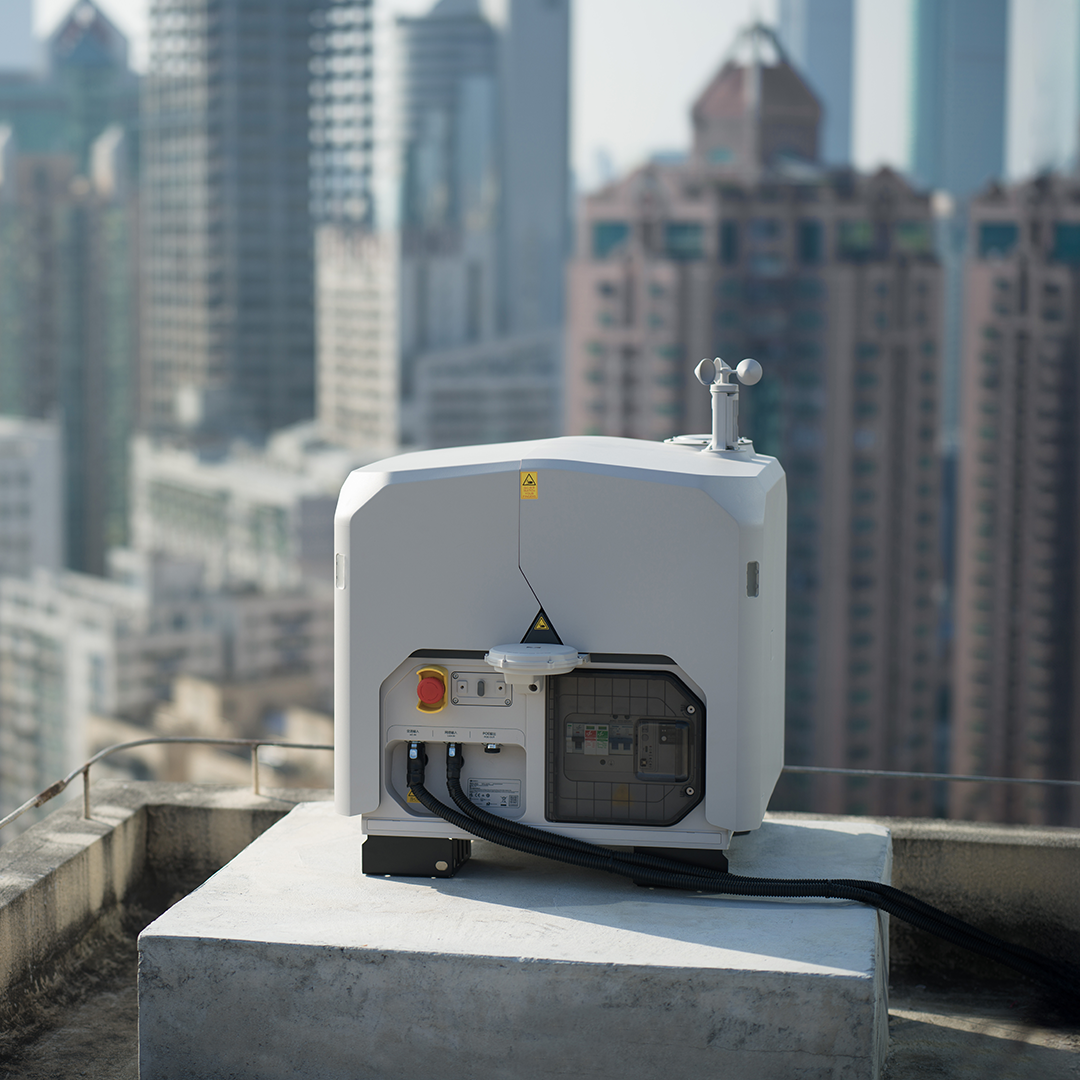

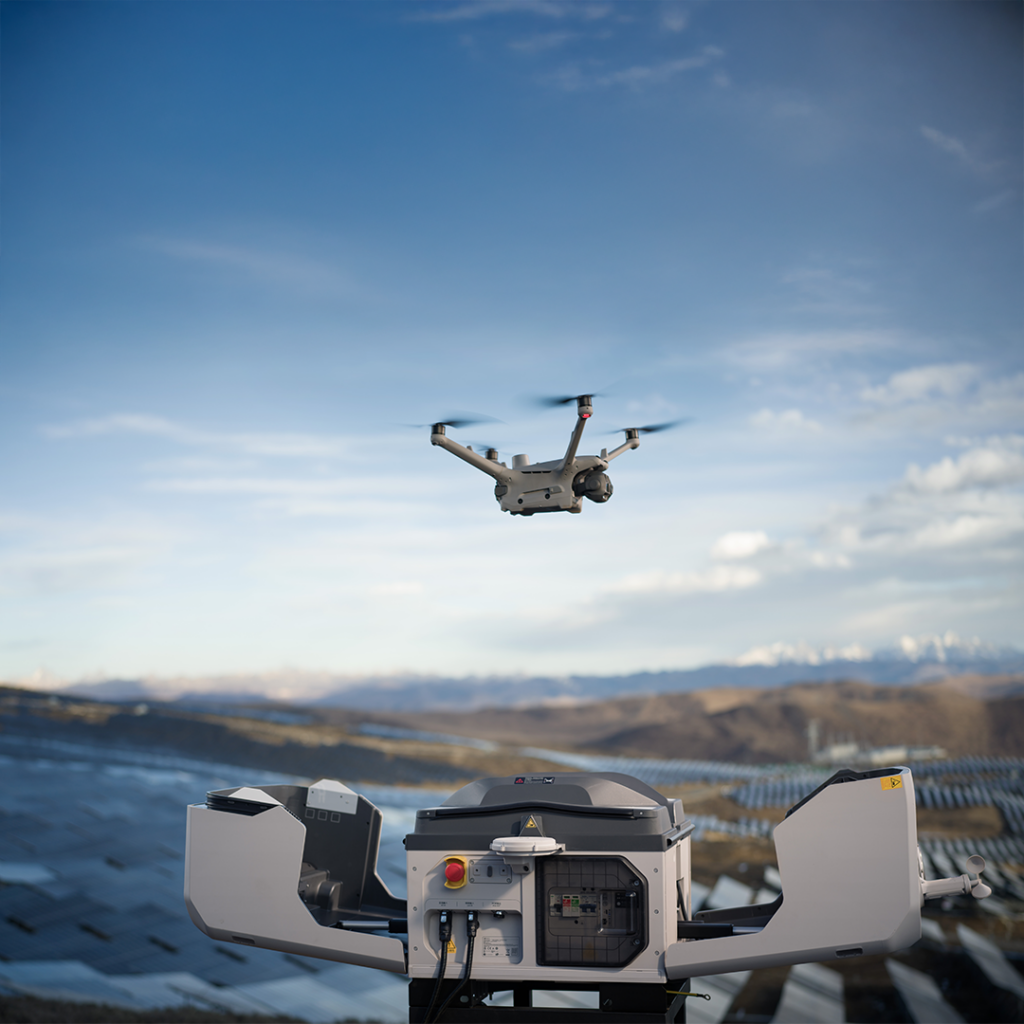

  • Dock system: DJI Dock 3, IP56 rated, supports fully autonomous and vehicle-mounted deployment

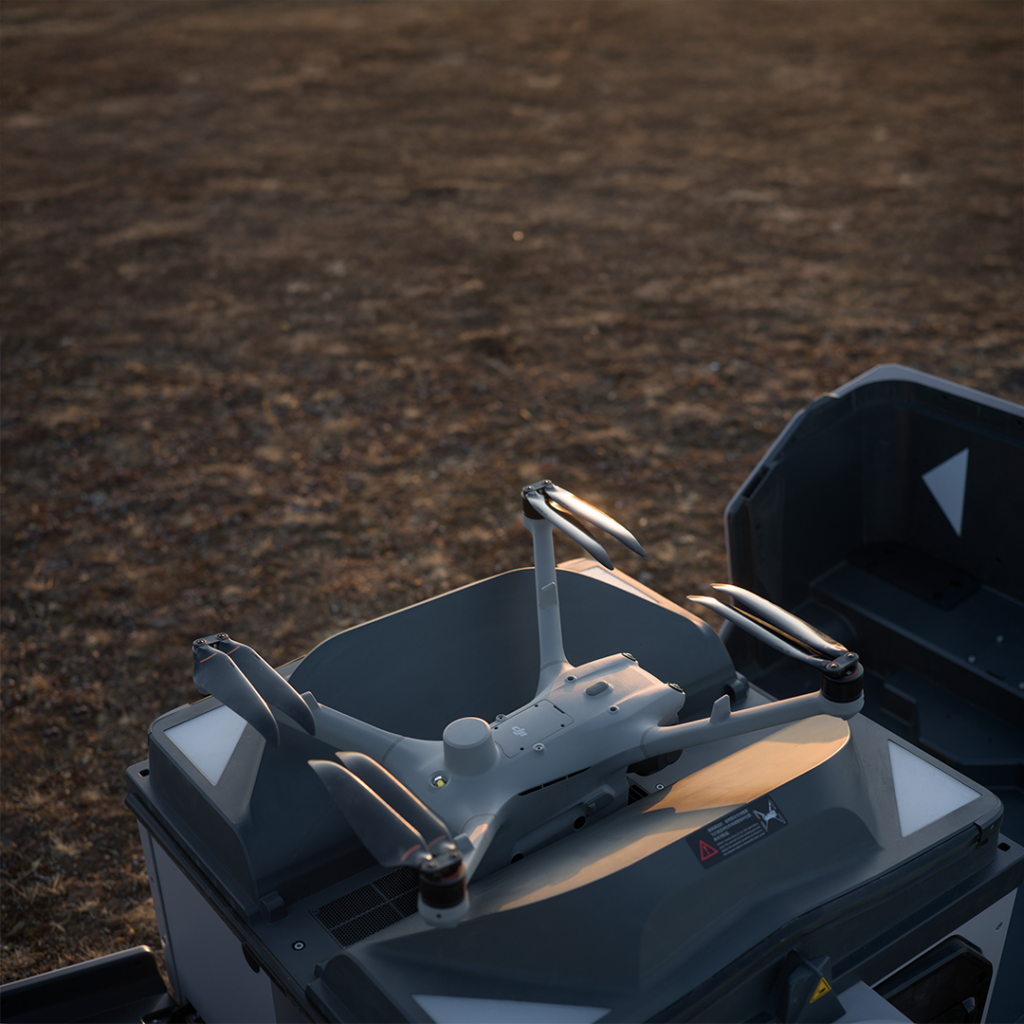

  • Aircraft: DJI Matrice 4D
  • Camera system: Wide-angle camera — 4/3″ CMOS, 20 MP, mechanical shutter, Medium telephoto camera — 48 MP, Telephoto camera — 48 MP
  • Laser Range Finder — up to ~1800 m (straight), ~600 m (oblique)
  • Flight endurance — up to 54 minutes forward flight, ~47 minutes hovering
  • Environmental protection — Aircraft IP55, Dock IP56
  • Included accessories — 1× M4D Battery, DJI RC Plus 2
  • Service plans — 1-Year “Return to Base” Midwich Plan (Dock), DJI Care Enterprise Plus 1-Year (Aircraft)
