DJI Matrice 4 Series

Introducing the DJI Matrice 4 Series, a new compact and intelligent multi-sensor flagship drone series for enterprise industries. The series includes Matrice 4T (which has an integrated thermal character) and Matrice 4E, each equipped with advanced features such as smart detection and measurement with laser range finder. Flight operations are now safer and more reliable with significantly enhanced sensing capabilities. The accessories for the Matrice 4 series have also been significantly upgraded.

Key Features

Wide-Angle Camera
Matrice 4E – 4/3 CMOS, 20MP Effective Pixels, f/2.8-f11, Format Equivalent: 24mm Mechanical Shutter

Medium Tele Camera
Matrice 4E – 1/1.3″ CMOS, 48MP Effective Pixels, f/2.8, Format Equivalent: 70 mm

Tele Camera
Matrice 4E – 1/1.5″ CMOS, 48MP Effective Pixels, f/2.8, Format Equivalent: 168 mm capture

Laser Range Finder
Matrice 4E – Measurement Range: 1800 m (1Hz); Oblique Incidence Range (1:5 Oblique Distance): 600m (1Hz) Blind Zone: 1m; Range Accuracy (m):+(0.2 +0.0015 x D) [1]

REQUEST MORE INFORMATION
DJI Matrice 4 Series
DJI Matrice 4 Series - Image 2
DJI Matrice 4 Series - Image 3

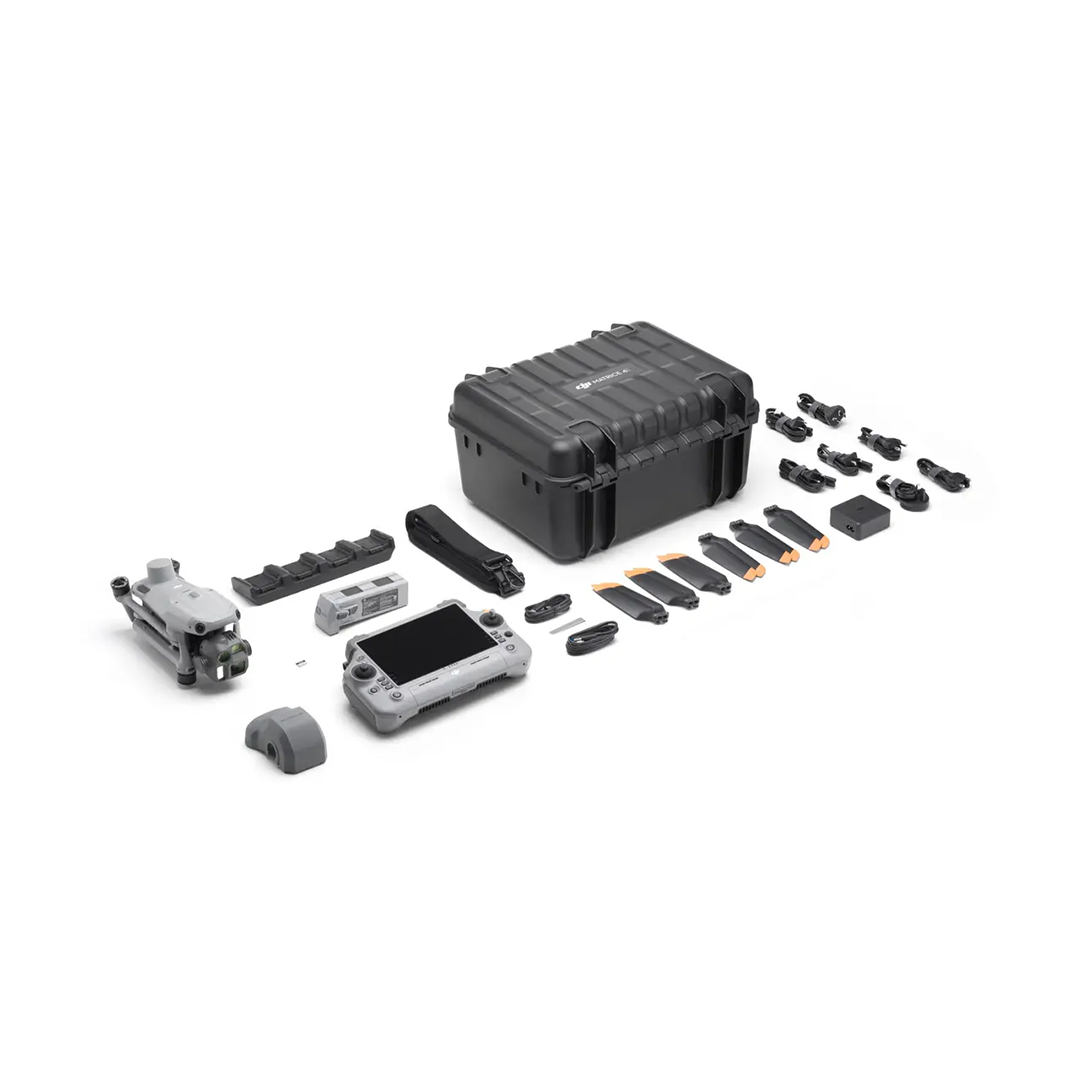

DJI Matrice 4 Series - Image 4

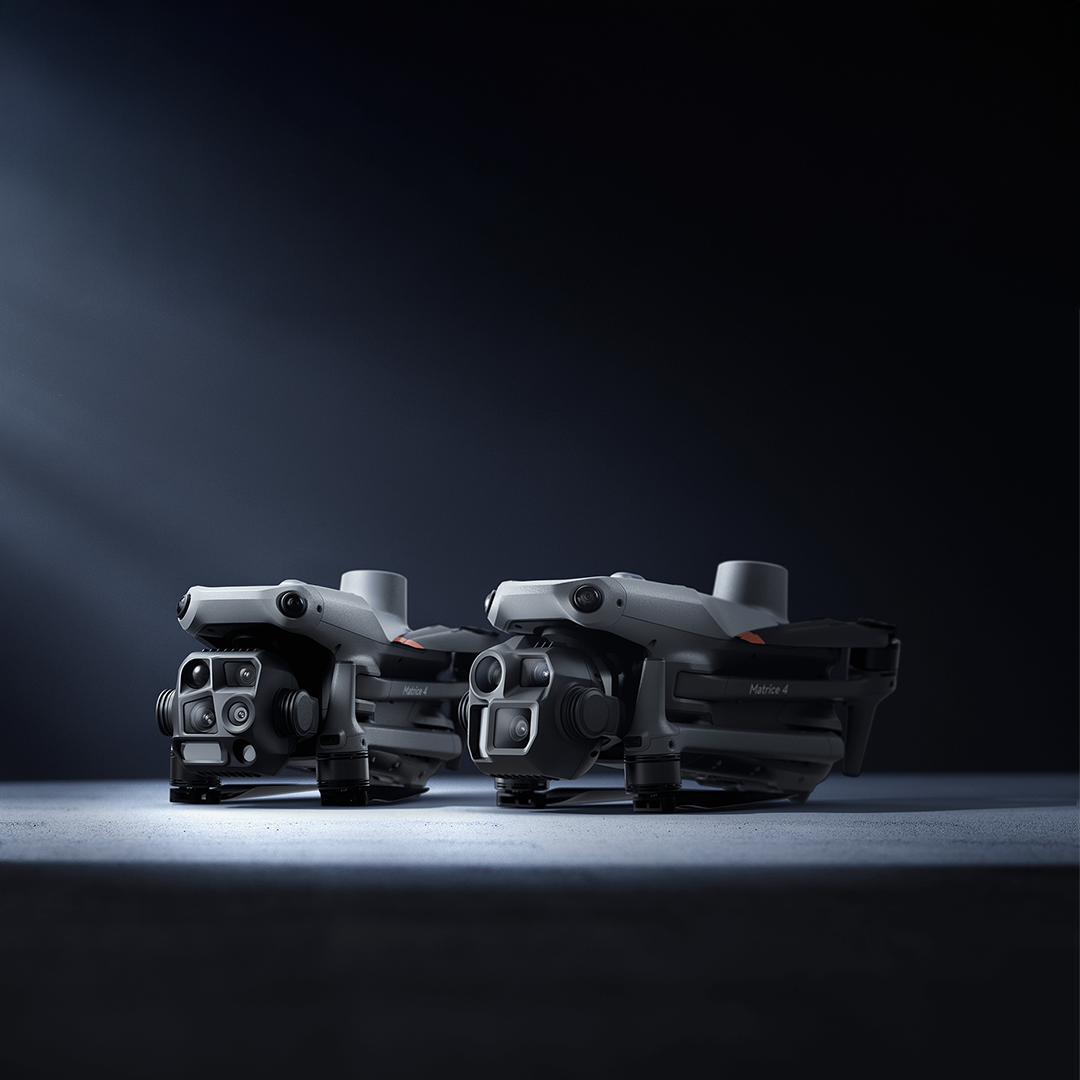

DJI Matrice 4 Series - Image 5
DJI Matrice 4 Series - Image 6
DJI Matrice 4 Series - Image 7

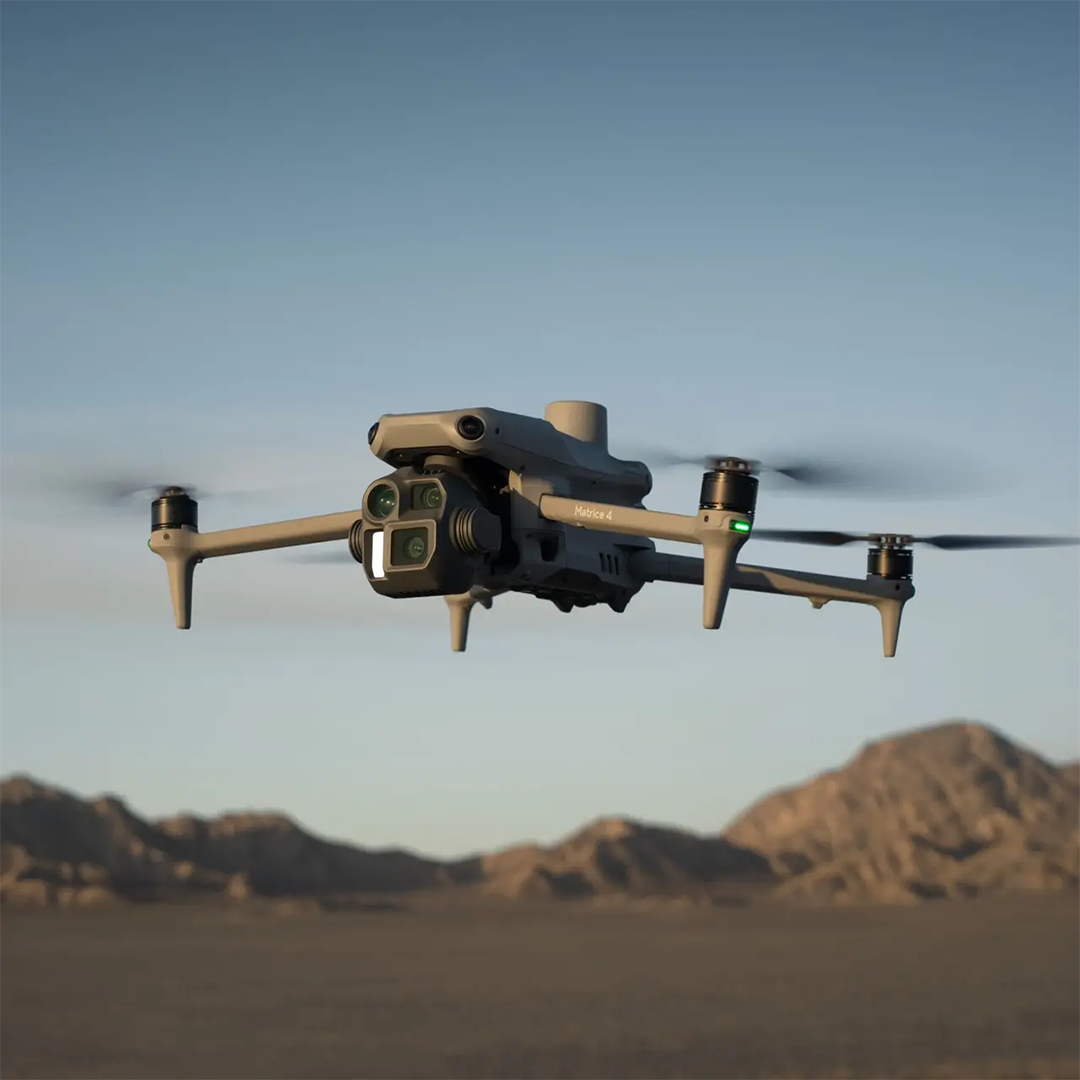

DJI Matrice 4 Series - Image 8

Description

The Matrice 4T is suitable for a wide range of industries, including electricity, emergency response, public safety, and forestry conservation. The Matrice 4E is designed for geospatial applications such as surveying and mapping, construction, and mining. The M 4E smart 3D capture mode and 5 directional oblique capture for more accurate models and efficent data capture. shooting at 0.5 sec intervals.

Flight Time: Up to 50 minutes with standard payload and TB65 battery set.

    • Max Flight Speed: 23 m/s (≈83 km/h) in Sport Mode.
    • Max Wind Resistance: Up to 12 m/s, allowing for stable operation in strong wind conditions.
    • Ingress Protection: IP55-rated, offering strong dust and water resistance for industrial environments.
    • Operating Temperature Range: -20°C to 50°C, suitable for harsh weather and field operations.
    • GNSS System: Supports GPS + Galileo + BeiDou + GLONASS (RTK capable) for high-precision positioning.
    • Transmission System: OcuSync 3 Enterprise (O3E) with triple-channel 1080p video and a range of up to 15 km (CE).
    • Obstacle Avoidance: 6-directional sensing using binocular vision and infrared sensors for comprehensive obstacle detection.
