Matrice 4T

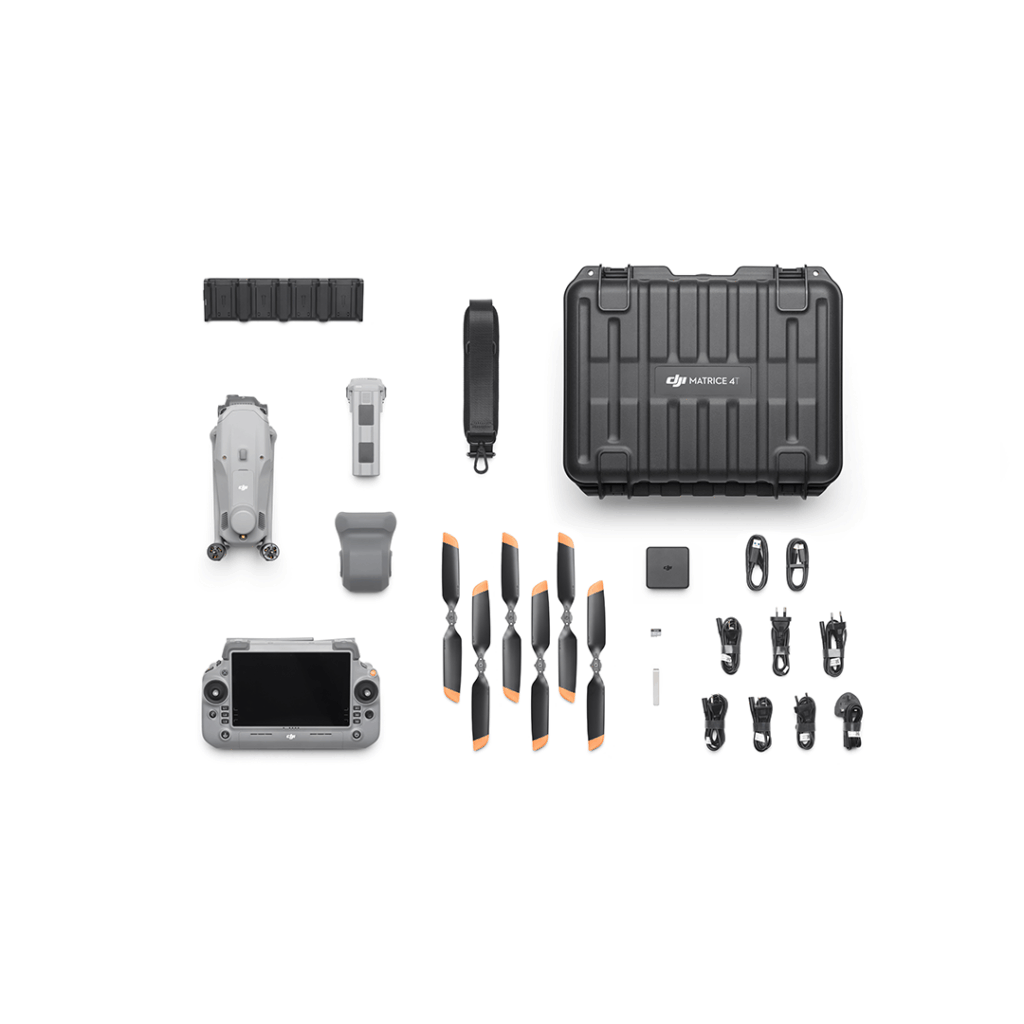

Introducing the DJI Matrice 4 Series, a new compact and intelligent multi-sensor flagship drone series for enterprise industries. The series includes Matrice 4T (which has an integrated thermal character) and Matrice 4E, each equipped with advanced features such as smart detection and measurement with laser range finder. Flight operations are now safer and more reliable with significantly enhanced sensing capabilities. The accessories for the Matrice 4 series have also been significantly upgraded.



Key Features

Wide Angle Camera
Matrice 4T – 1/1.3″ CMOS, 48MP Effective Pixels, f/1.7, Format Equivalent: 24 mm

Medium Tele Camera
Matrice 4T – 1/1.3″ CMOS, 48MP Effective Pixels, f/2.8, Format Equivalent: 70 mm

Tele Camera
Matrice 4T – 1/1.5″ CMOS, 48MP Effective Pixels, f/2.8, Format Equivalent: 168 mm capture.

Laser Range Finder
Matrice 4T – Measurement Range: 1800 m (1Hz); Oblique Incidence Range (1:5 Oblique Distance): 600m (1Hz) Blind Zone: 1m; Range Accuracy (m):+(0.2 +0.0015 x D) [1]

REQUEST MORE INFORMATION

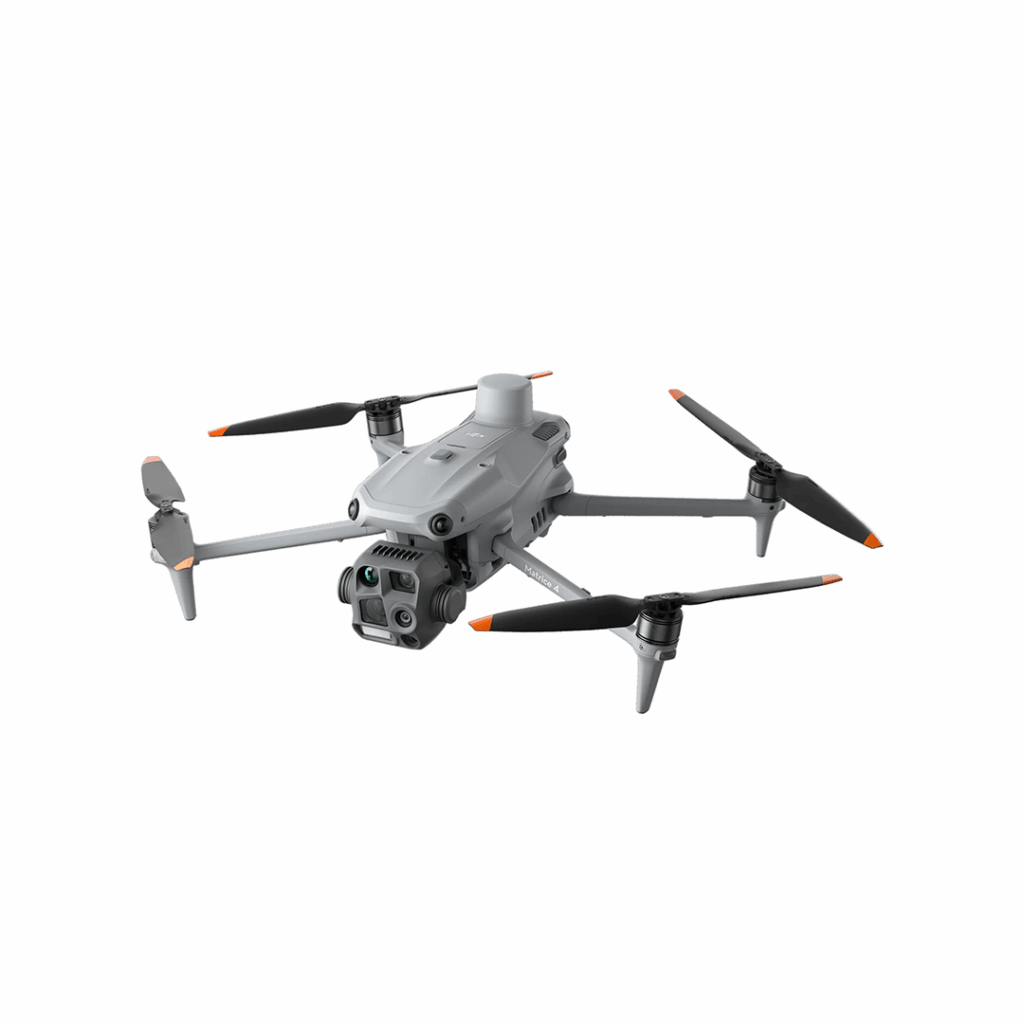

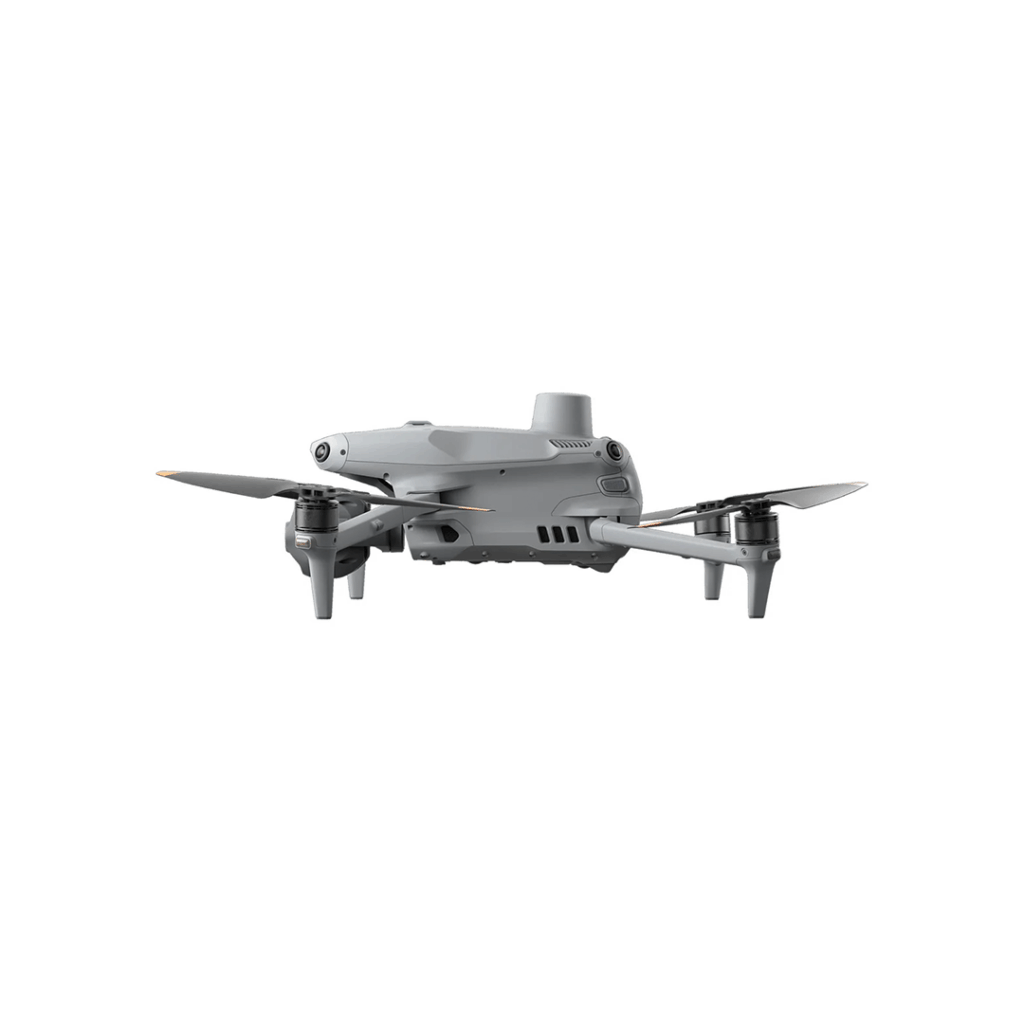

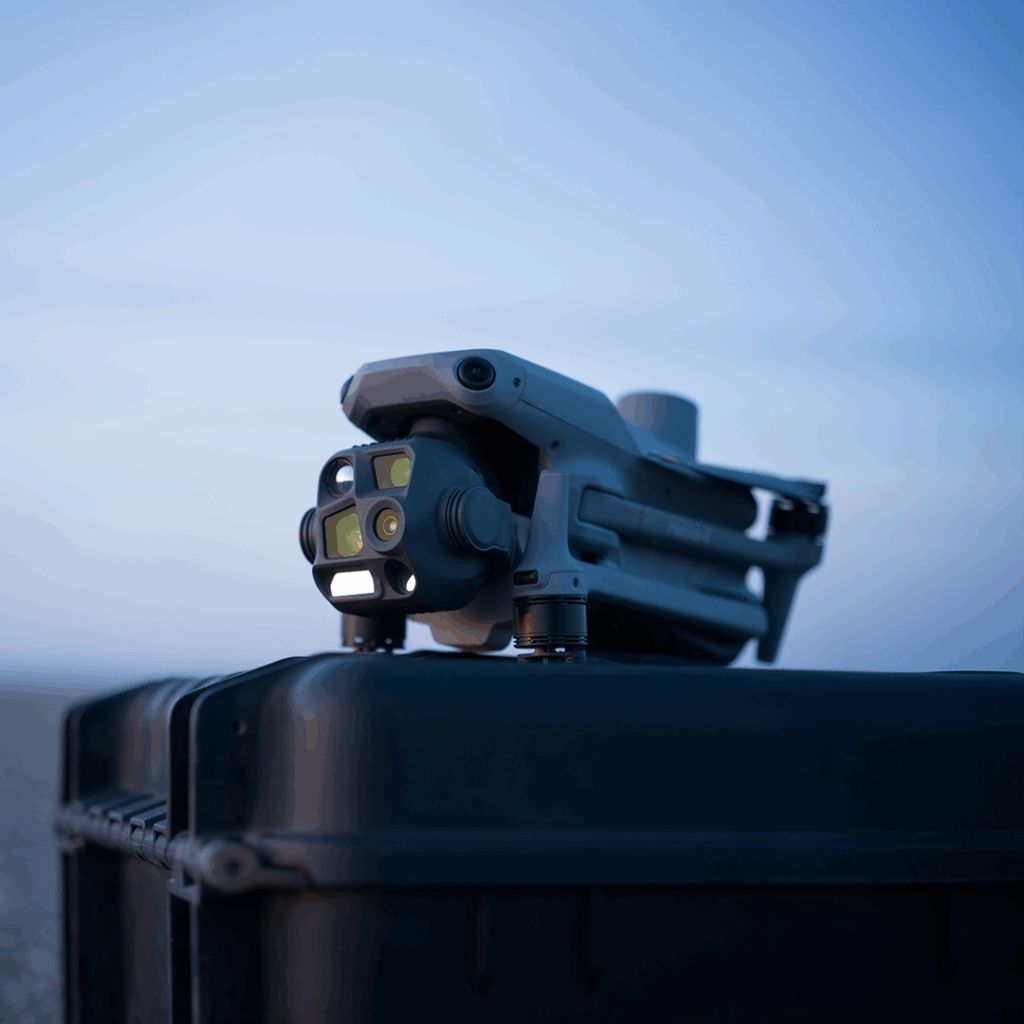

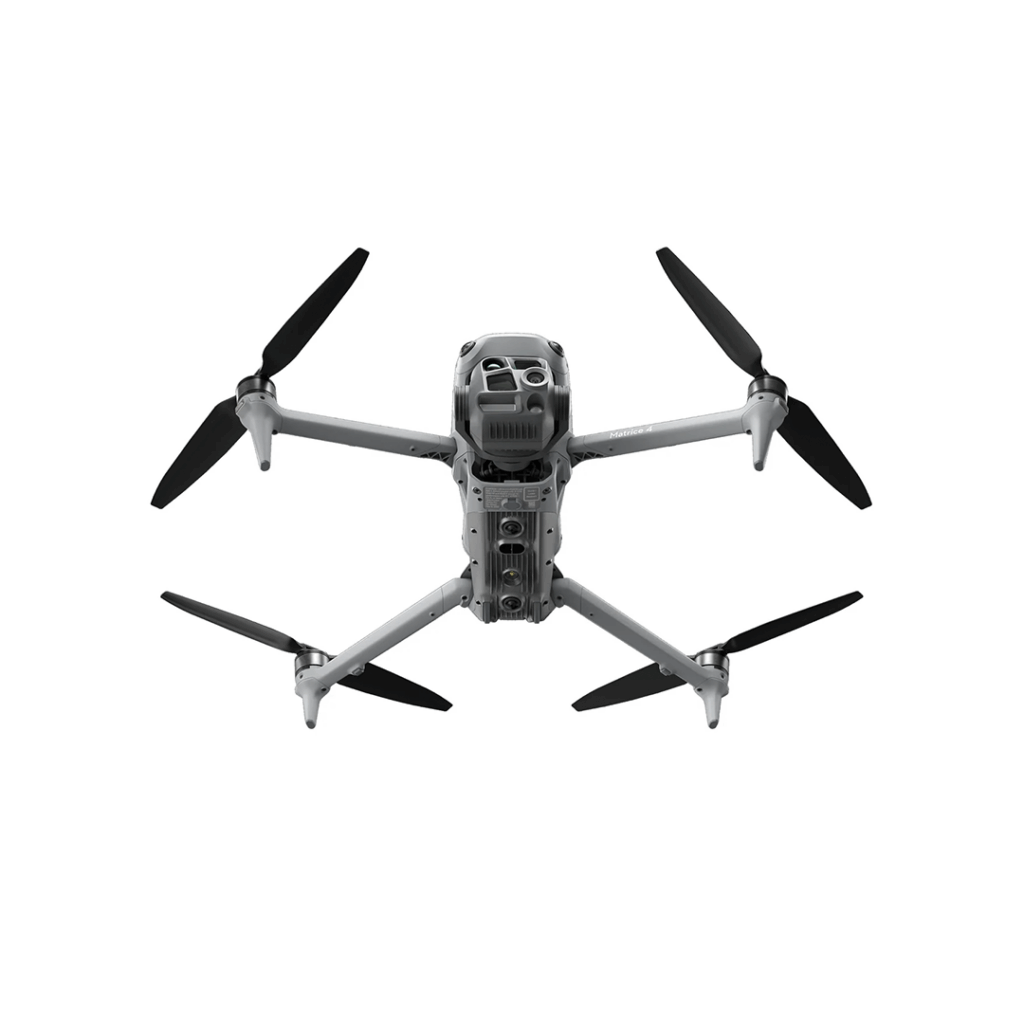

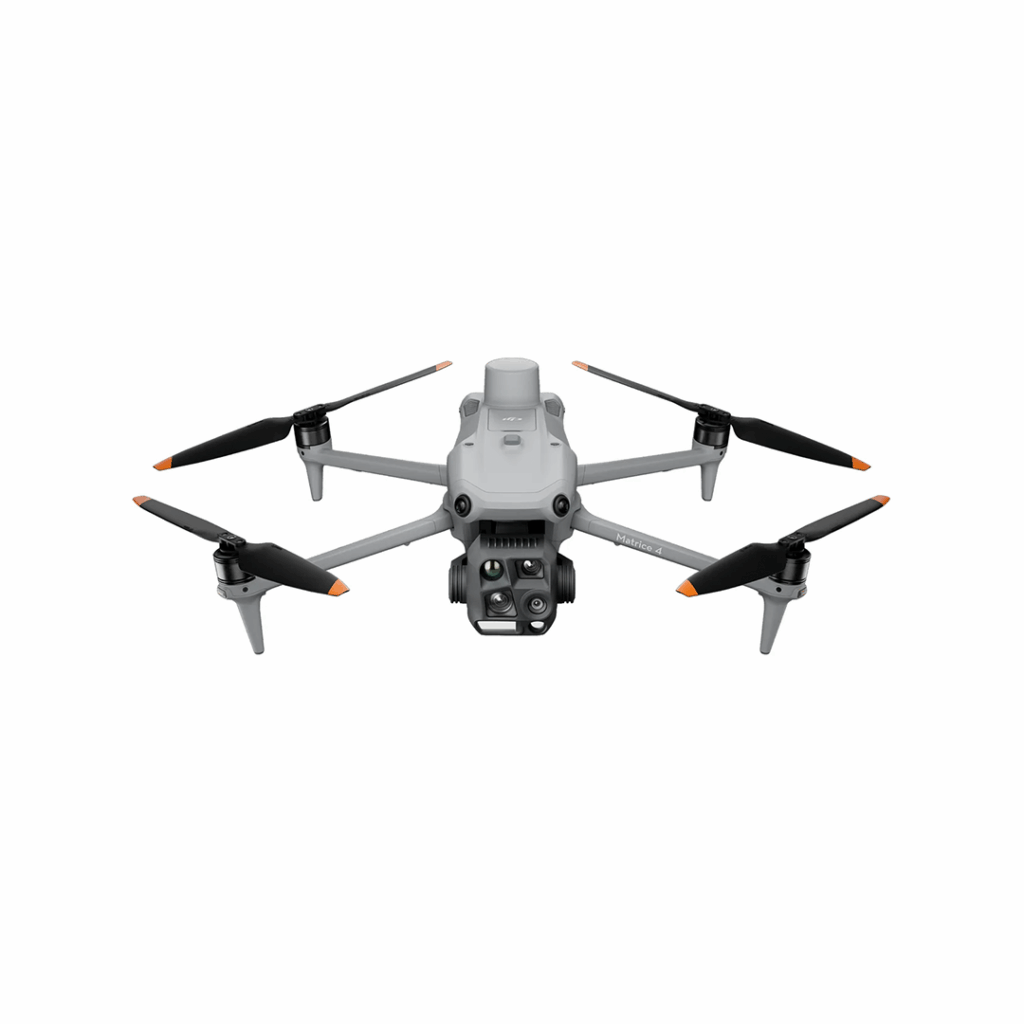

Matrice 4T
Matrice 4T - Image 2
Matrice 4T - Image 3
Matrice 4T - Image 4
Matrice 4T - Image 5
Matrice 4T - Image 6
Matrice 4T - Image 7
Matrice 4T - Image 8
Matrice 4T - Image 9

Description

The Matrice 4T is suitable for a wide range of industries, including electricity, emergency response, public safety, and forestry conservation.

• Flight Time: Up to 50 minutes with standard payload and TB65 battery set.

  • Max Flight Speed: 23 m/s (≈83 km/h) in Sport Mode.
  • Max Wind Resistance: Up to 12 m/s, allowing for stable operation in strong wind conditions.
  • Ingress Protection: IP55-rated, offering strong dust and water resistance for industrial environments.
  • Operating Temperature Range: -20°C to 50°C, suitable for harsh weather and field operations.
  • GNSS System: Supports GPS + Galileo + BeiDou + GLONASS (RTK capable) for high-precision positioning.
  • Transmission System: OcuSync 3 Enterprise (O3E) with triple-channel 1080p video and a range of up to 15 km (CE).
  • Obstacle Avoidance: 6-directional sensing using binocular vision and infrared sensors for comprehensive obstacle detection.
