Description
Connect to a better way to work with a touchscreen that flexes between total station and GNSS
Seamlessly transition between GNSS and total station workflows with a touchscreen tablet that’s designed to power the modern surveyor and construction professional. The Trimble T70 tablet is a compact, lightweight Android device that acts as a single, fully-connected controller that simplifies your toolkit and adapts instantly to your daily tasks, keeping you connected to your hardware and your team from anywhere on the job site.

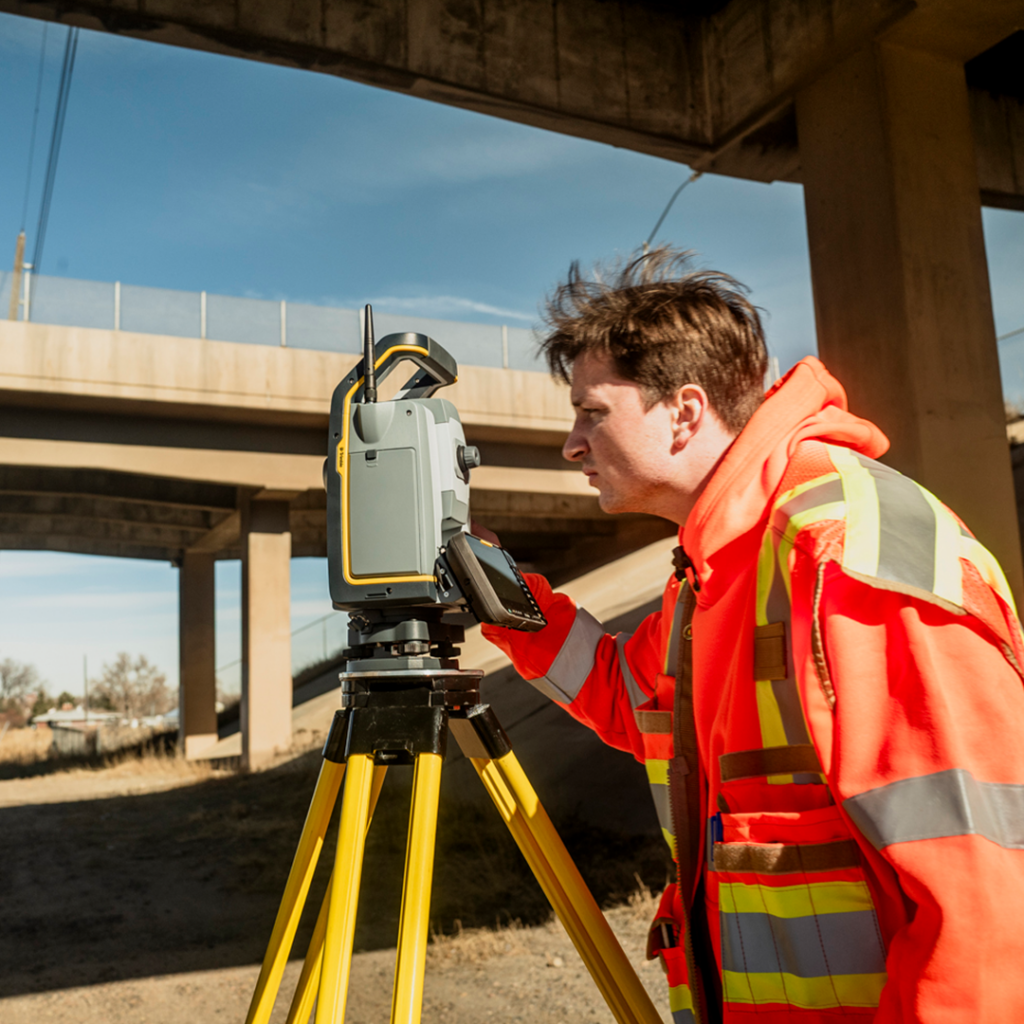

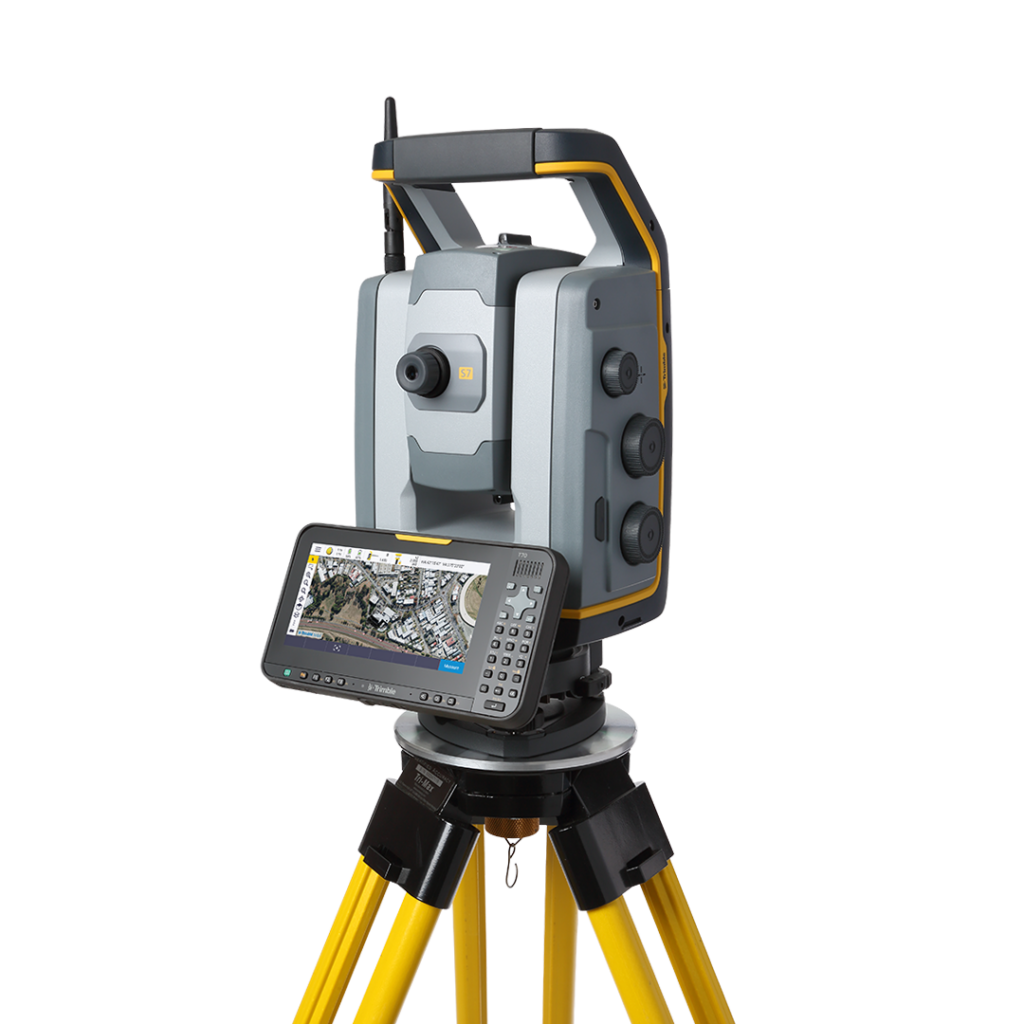

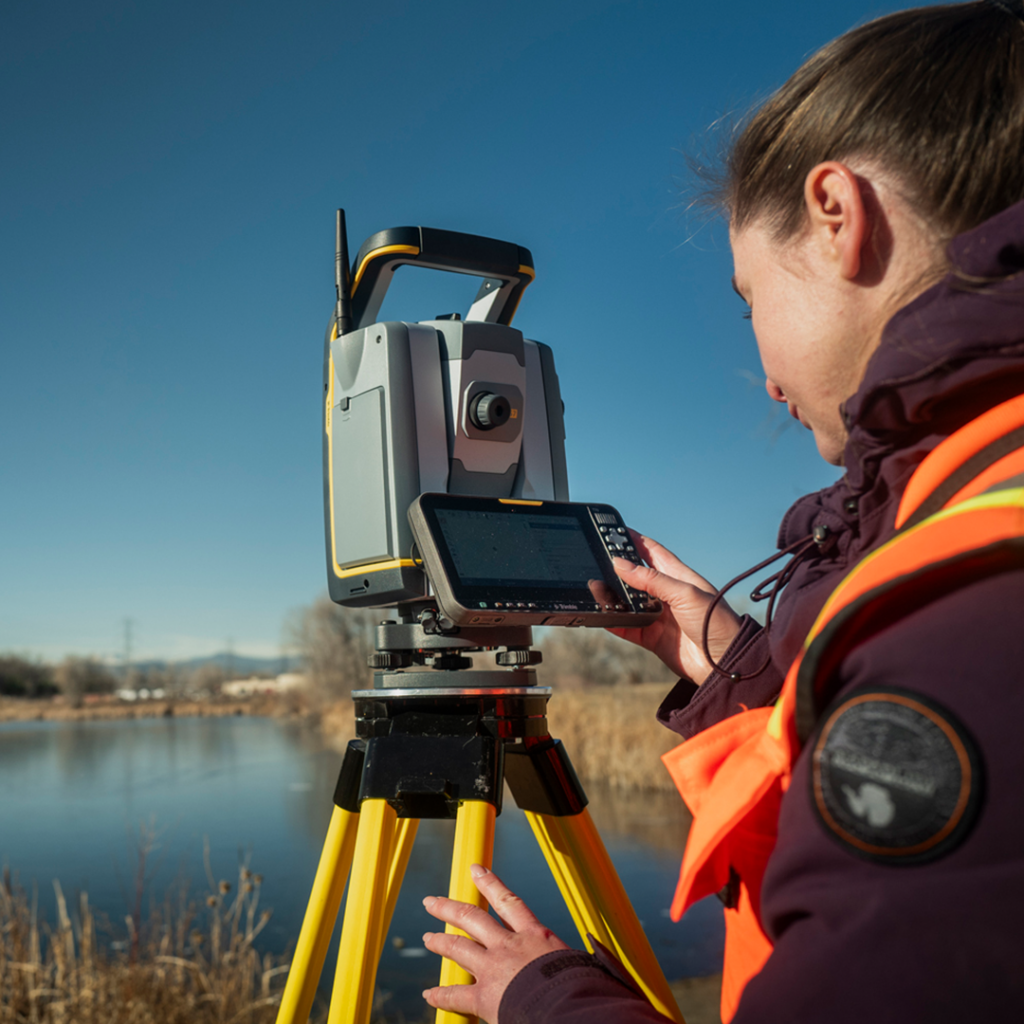

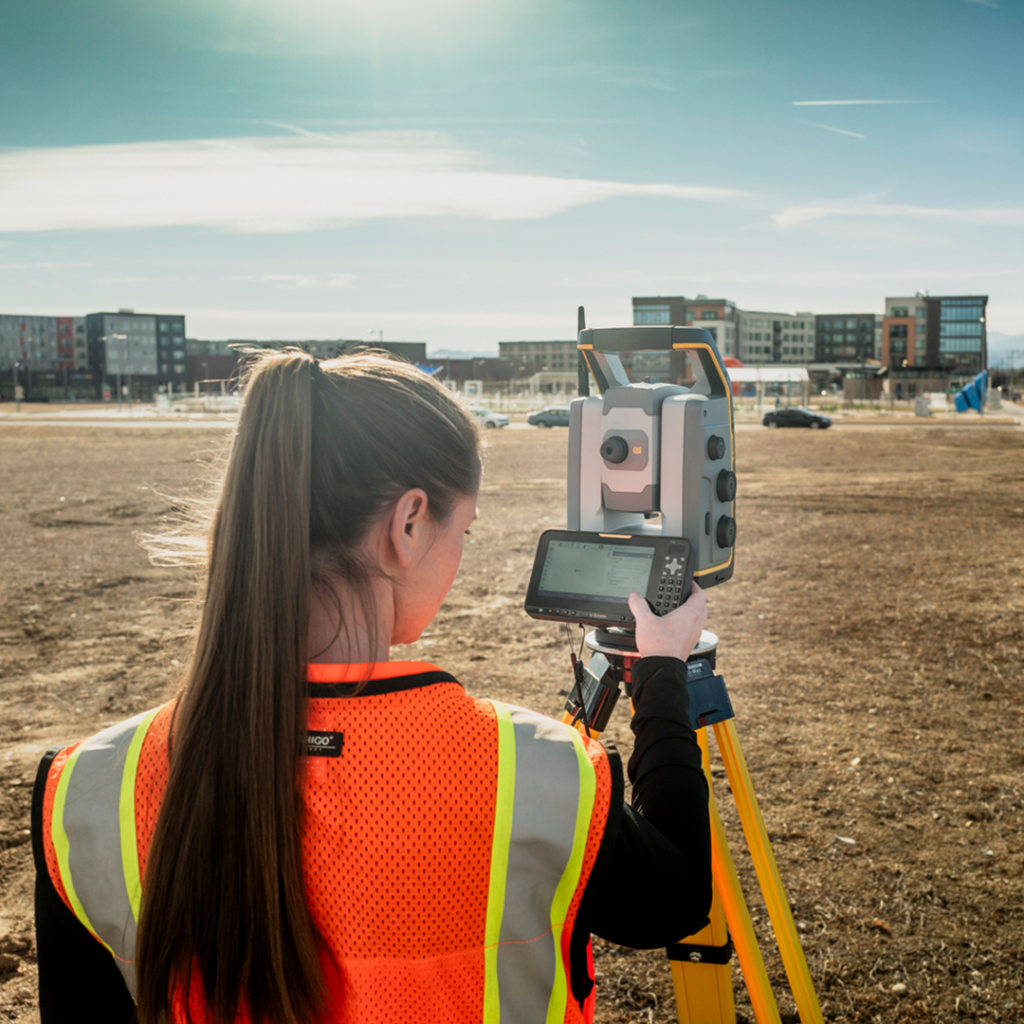

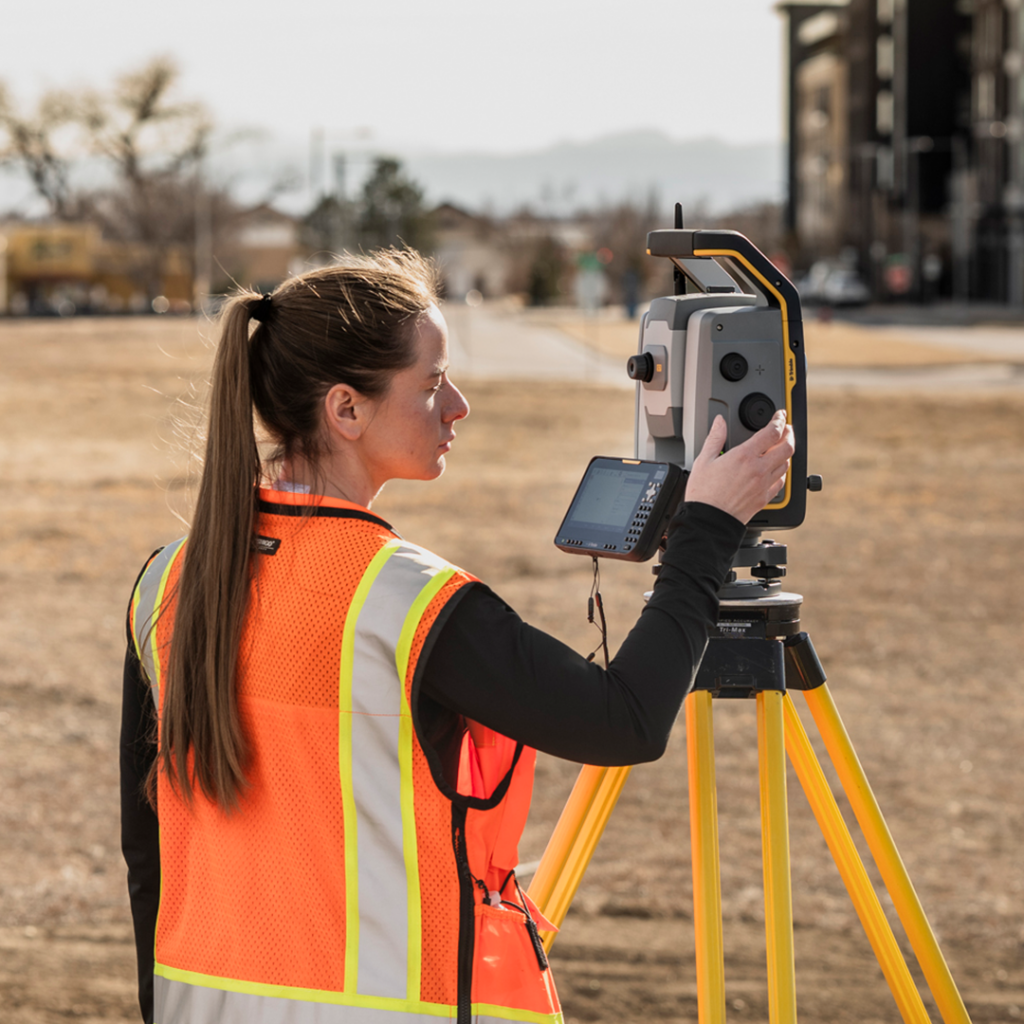

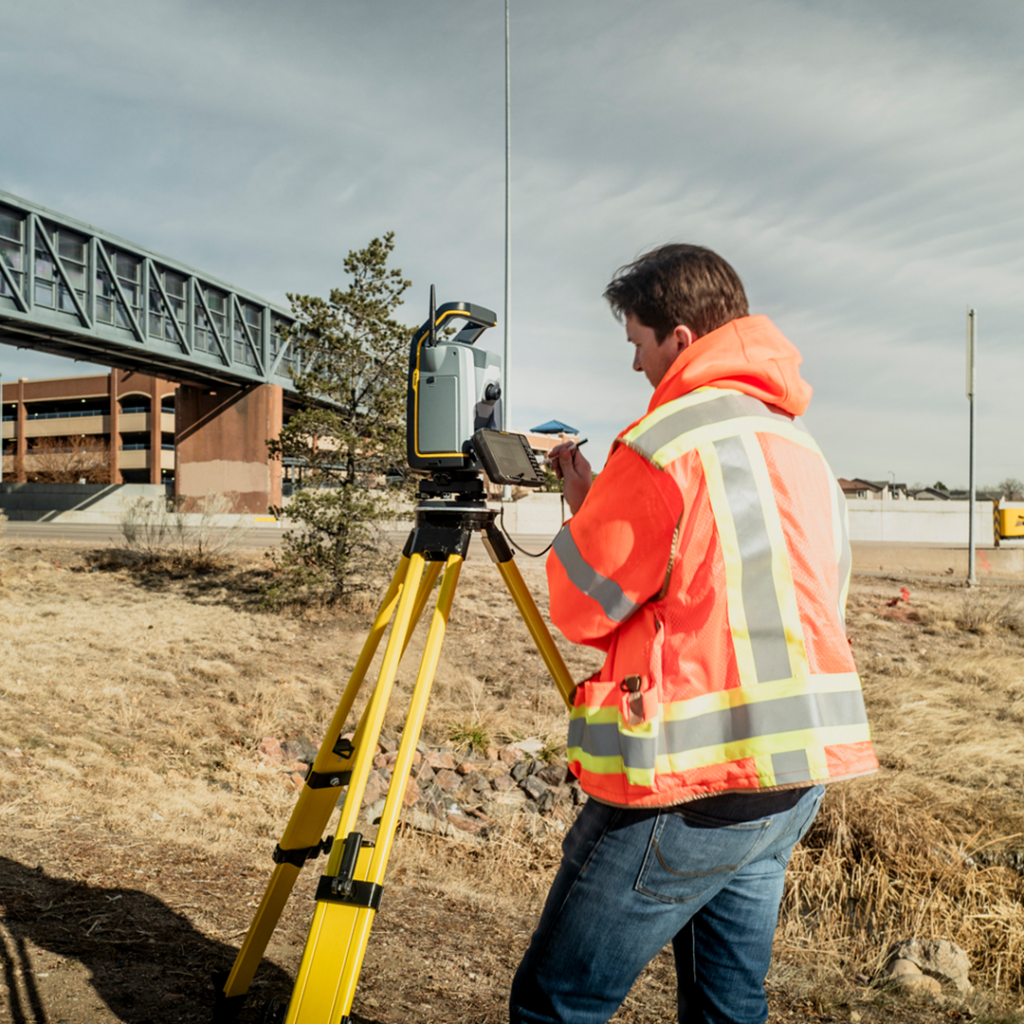

- Clips on to the total station – for an on-instrument touchscreen when you want it
- Integrated surveying – flex between using with a total station and GNSS. No need to stop and reconnect, and no need to leave Trimble Access
- Powerful processing – the same processing power as a Trimble TSC510 controller, so you can load more files, work with bigger models, and keep using the same device for years to come
- All-day battery-life – up to 12 hours of continual use in tests done with real-world conditions
- 30% lighter than a TSC510 – you can lessen the strain from an all-day job
- Android based – get access to all the Android apps you know and love

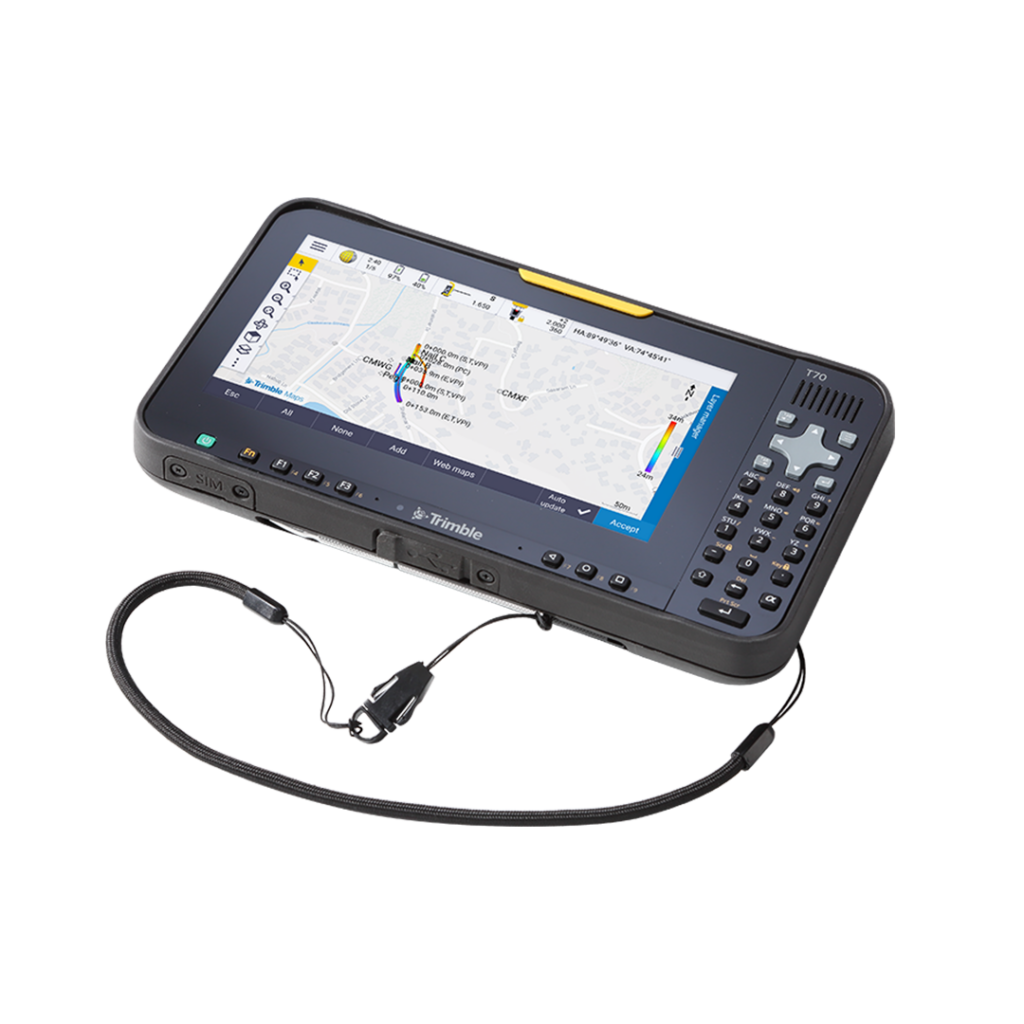

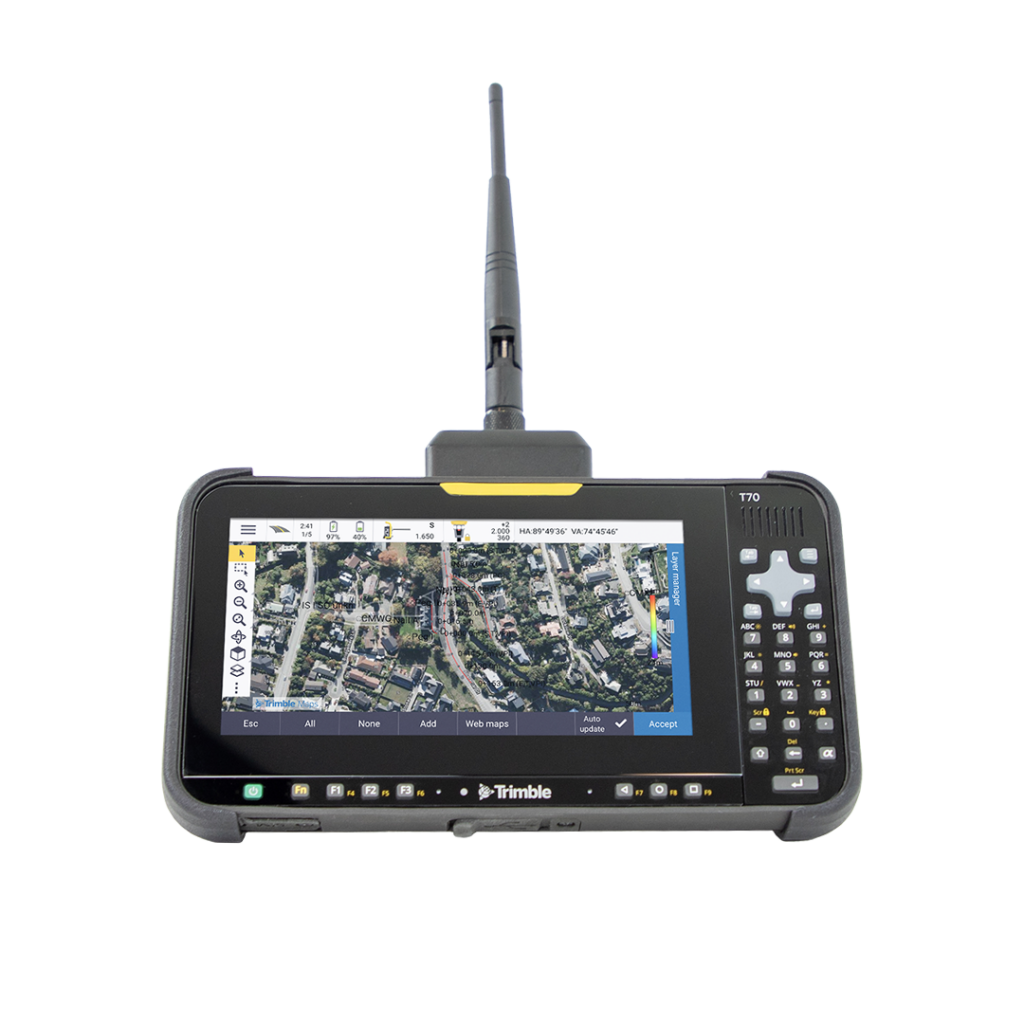

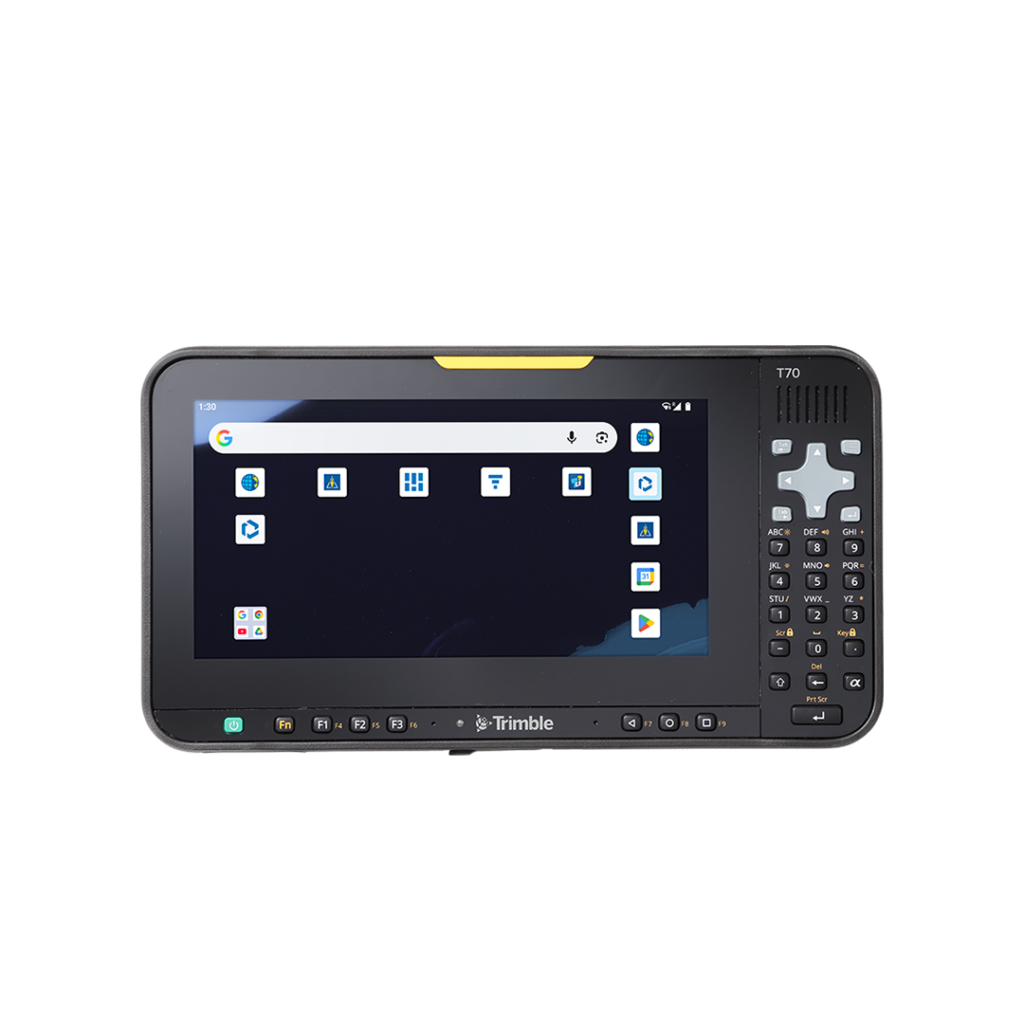

- 6″ touchscreen with dedicated hardware buttons – the perfect mix of portability and performance

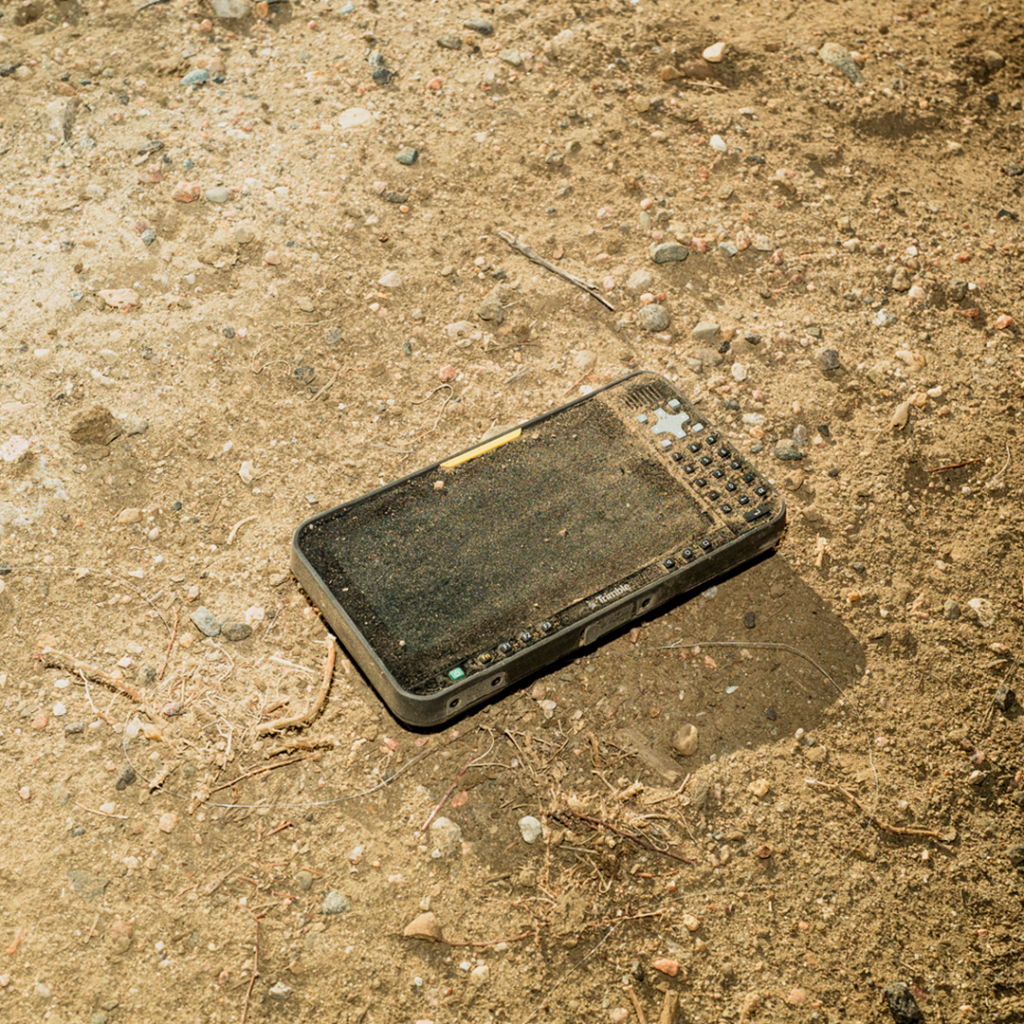

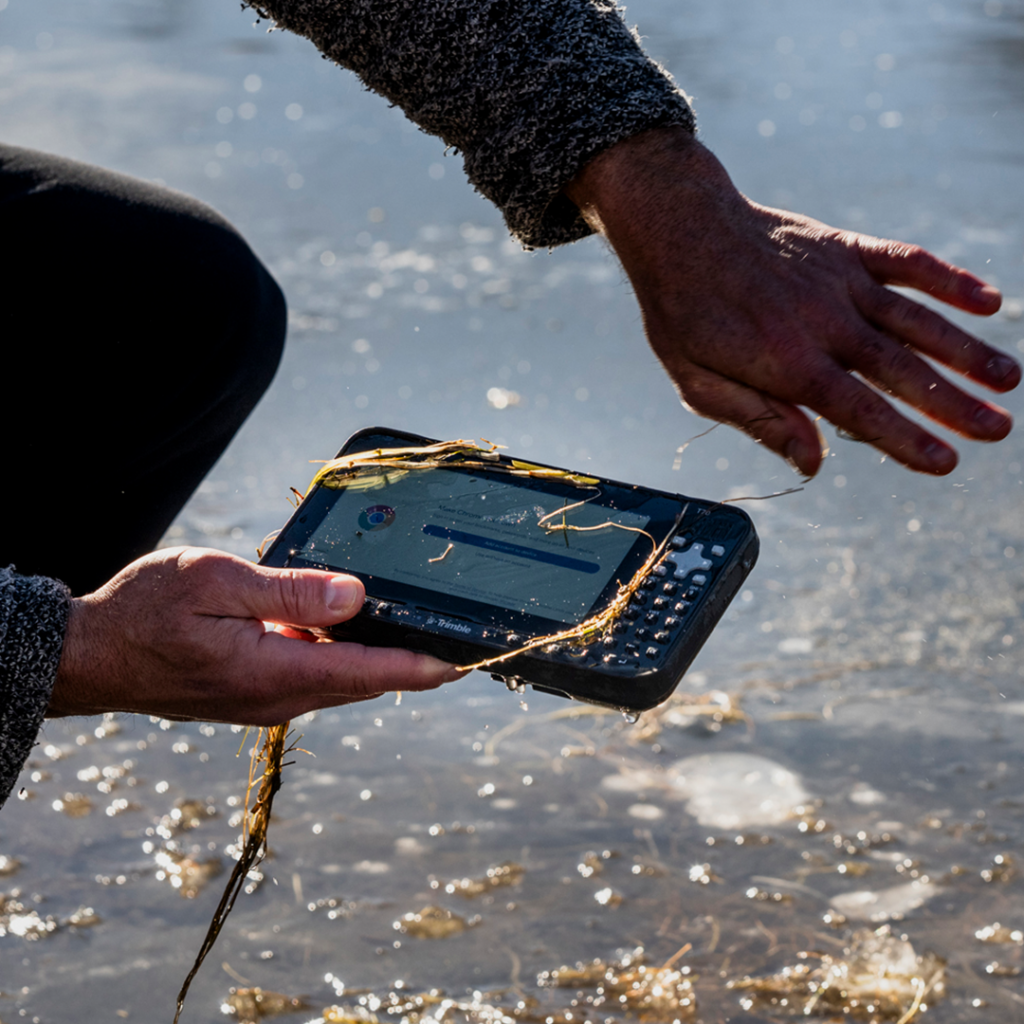

- IP68 and MIL-STD-810H rated – dust-proof, water-proof, drop-proof – everything you expect from Trimble
Designed to power modern workflows
For survey
- Great for topographic mapping and precise layouts
- Compact and lightweight, long battery life, high performance field software

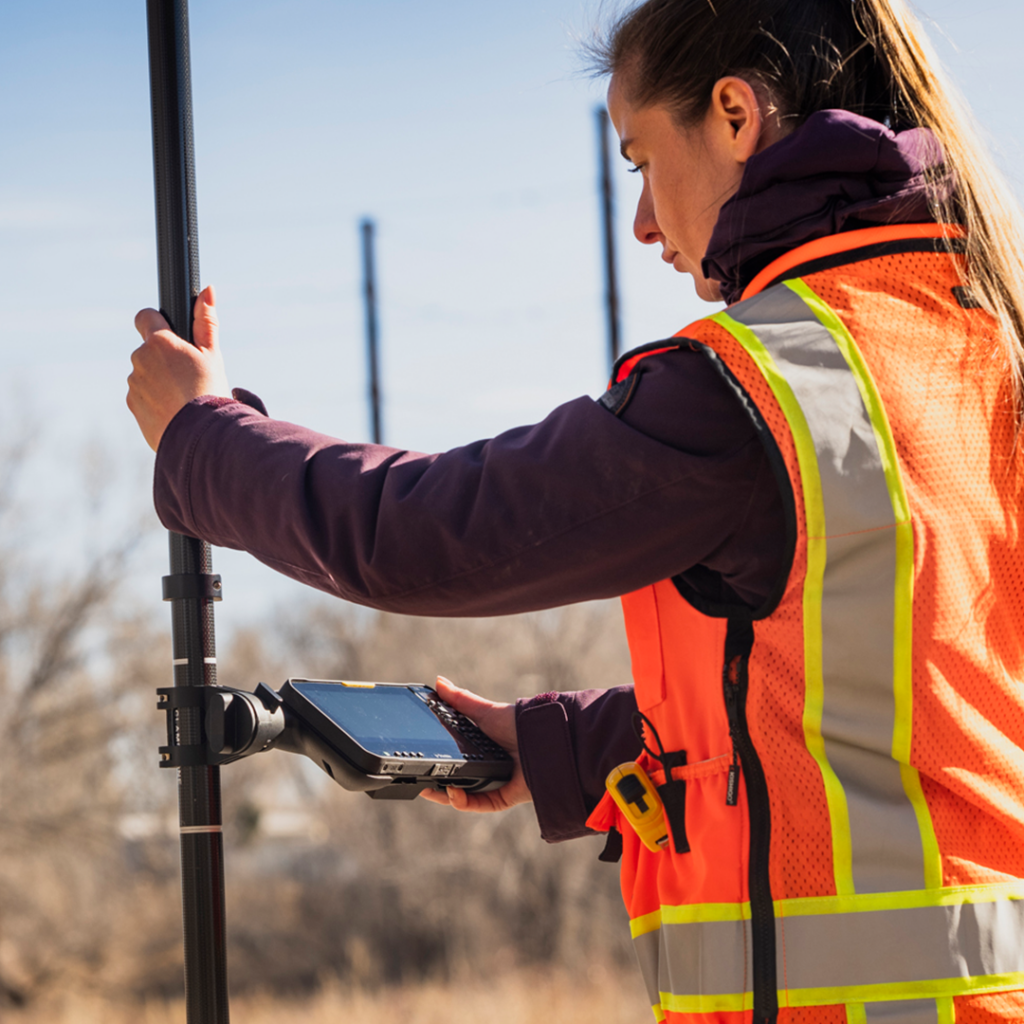

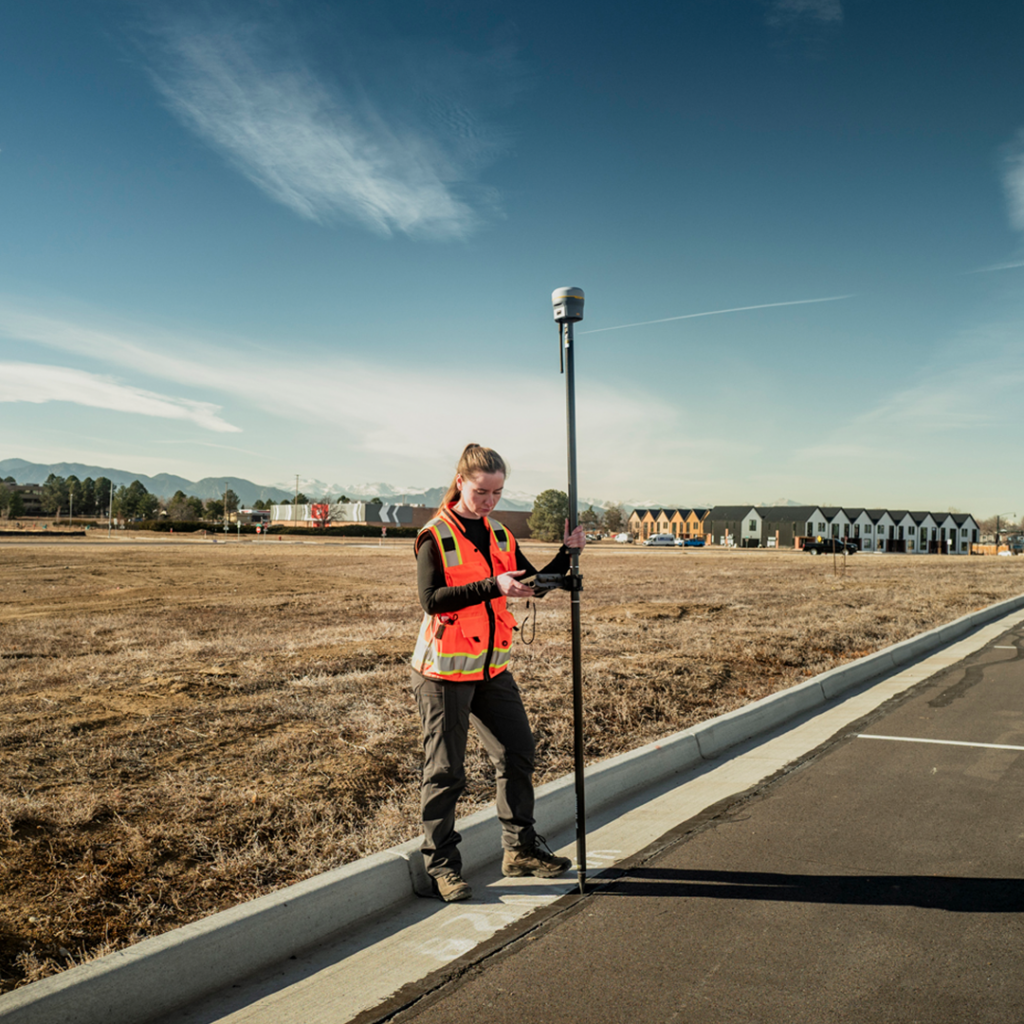

- Ultimate versatility – works with GNSS rovers, onboard or robotically with a total station, or as a standalone tablet
For construction
- Great for on-the-move data validation (checking grades, tracking volumes, monitoring schedules)
- Seamlessly transition between field and vehicle.
- Easily mounts inside truck cabs, heavy machinery, on a pole or on a total station
For mapping
- Upgrade from a TDC6 to a bigger, better screen
- More buttons to speed up your workflow without the weight of a TSC510
- Use all your favourite Android apps, including GIS
Tech specs
The key features of the T70 include:
- 6-inch multi-touch sunlight-readable screen designed for finger, glove, or stylus use
- 760 g (26.8 oz) lightweight design for comfortable, all‐day use
- Secure, modern Android operating system
- Qualcomm QCS6490 processor with 8 GB memory and 128 GB storage, delivering a smooth software experience
- Integrated 4G WWAN, Wi-Fi, Bluetooth, and NFC connectivity
- Integrated camera for streamlined documentation of site conditions
- 12-14 hours of continuous operation from a long-life integrated battery
- Versatile controller for standalone use, rod-mounted GNSS and robotic surveys, or onboard S series total stations
- Addition of a new Trimble Data Manager file transfer application
- USB-C port for charging & data transfer
- Worldwide 4G LTE & 3G UMTS networks are supported
- Wi-Fi 6 for faster wireless connectivity
- Bluetooth 5.2, BLE 5, Class 1
- Integrated Near-Field Communications (NFC)
